Description

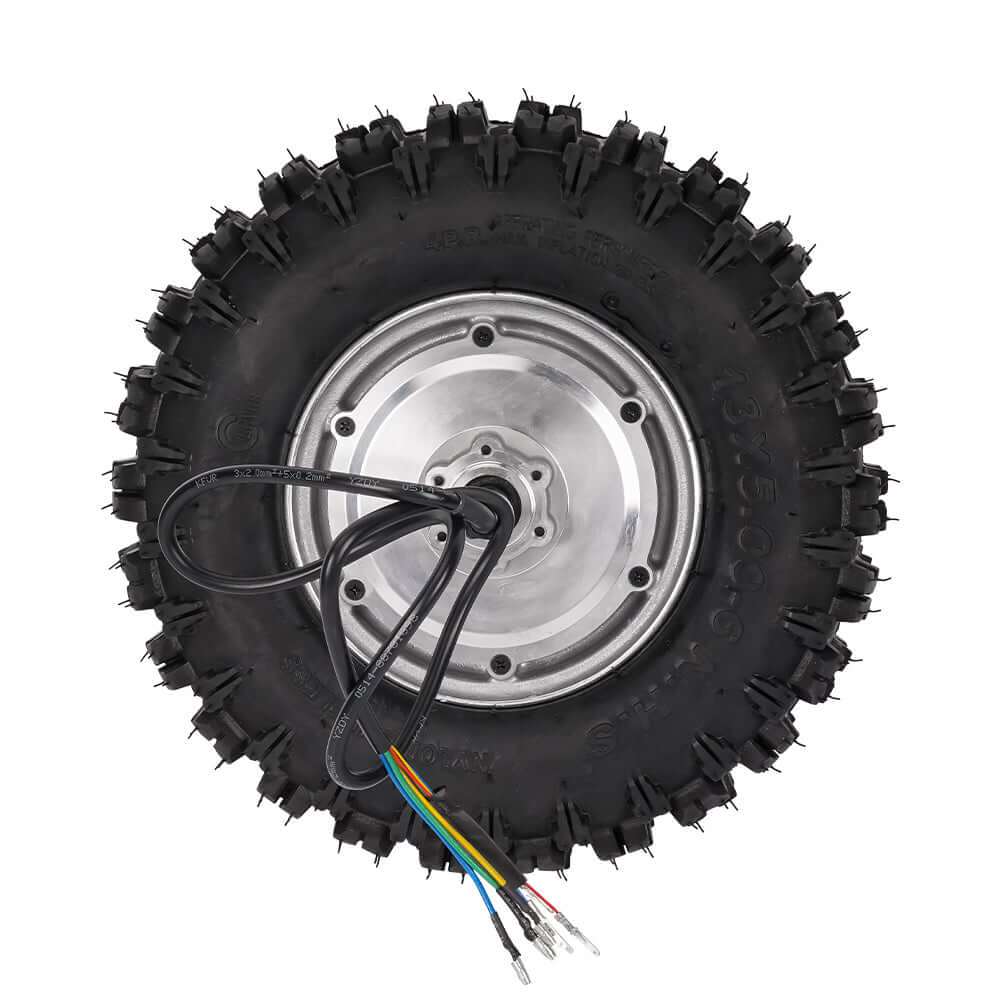

xThe 13-inch electric brushless geared servo hub motor is a cutting-edge innovation designed to deliver high-performance power for a variety of applications. The motor integrates brushless technology, geared hub design and servo control mechanisms directly into the hub, a design that allows the motor to deliver high torque for demanding loads and provide extremely precise rotational control, making it suitable for applications where power and precision are required. Designed for durability and precision, it provides excellent torque and control for powering electric utility vehicles, material handling equipment and other heavy-duty agricultural vehicles.
| Model Type | 13 inch Brushless Geared Hub Motor |
| Matched Wheel | 13 inch |
| Design | Brushless Geared |
| Rated Voltage | 48V |
| Rated Power | 500W/1000W |
| Unload Speed | 5-15km/h |
| Max Torque | 100/150N.m |
| Brake Type | Disc brake |
| Shaft Type | Single shaft/Double shaft |
| Heavy Load | 300Kg |
| Open Size | 155mm |
| Control System | Soft Start Controller |
One of the outstanding features of this hub motor is its versatility and adaptability. The brushless design eliminates wear-prone components such as brushes, greatly reducing maintenance requirements and extending the life of the motor. In addition, the integrated gear system enhances torque output, allowing the motor to handle heavy loads with ease. For added functionality, an optional encoder can be fitted for precise speed and position feedback, which is particularly useful for creating advanced 4WD systems in large agricultural vehicles. This feature also allows operators to optimise traction and stability on challenging terrain, traversing uneven fields and muddy terrain with ease, increasing overall productivity.
In addition, the addition of an encoder allows for real-time monitoring and automatic adjustments to improve efficiency for tasks such as ploughing, planting or transporting crops. In addition to agriculture, this motor can be used in other areas including industrial material handling equipment, electric utility vehicles, and even specialised robotic platforms that require reliable mobility solutions.
Categories and Advantages
Hub motors can be categorized based on motor type and drive mechanism, each with distinct advantages:
| Category | Description | Advantages |
| Brushless vs. Brushed | Brushless motors use electronic commutation, while brushed use mechanical brushes. | Brushless: Higher efficiency, longer lifespan, lower maintenance; |
| Brushed: Simpler, cheaper, but less durable. | ||
| Geared vs. Direct Drive | Geared motors use internal gears for torque, while direct drive have no gears, with wheel RPM equal to motor RPM. | Geared: Higher torque, better for hills, lighter; |
| Direct Drive: Simpler, quieter, but heavier and less torquey. |
Given this motor is brushless and geared, it benefits from efficiency, durability, and high torque, making it suitable for custom electric unicycles requiring enhanced performance.
Maintenance and Considerations
Maintenance for this motor includes regular cleaning and inspection of the motor and gears to ensure smooth operation, proper lubrication of gears to minimize friction and wear, and checking for loose connections or damaged wires in the control system, especially important for the servo functionality. Users should also consider the motor's compatibility with the unicycle's frame and battery system, ensuring proper integration for safety and performance.
