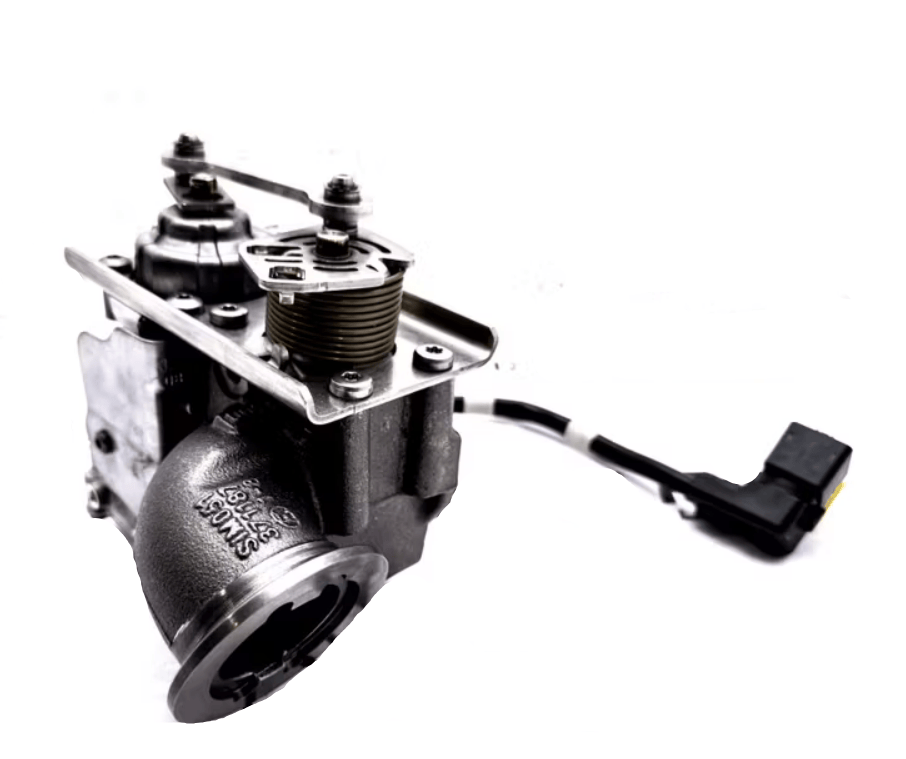

21623360 | Genuine Paccar® EGR Control Valve

• When an engine burns fuel, high combustion temperatures cause nitrogen (N₂) and oxygen (O₂) in the air to combine into nitrogen oxides (NOx).

• NOx gases contribute to air pollution, smog, and acid rain.

• The EGR valve helps prevent this by recirculating some exhaust gases back into the intake.

• This dilutes the air-fuel mixture and lowers combustion temperature, so less NOx is produced.

Additional Benefits 21623360

1. Better Emissions Control – Meets environmental regulations by reducing NOx output.

2. Improved Fuel Economy (in some cases) – A cooler combustion chamber can reduce the need for fuel enrichment.

3. Reduced Engine Knock – Lower combustion temperatures help prevent knocking or “pinging.”

4. Enhanced Engine Longevity – Keeps the combustion process more stable and reduces stress on internal parts.

1. Rough Idle or Stalling

• If the EGR valve sticks open, too much exhaust gas enters the intake when it shouldn’t.

• This causes the air-fuel mixture to become unstable at idle → engine may shake, idle roughly, or stall.

 2. Engine Knocking or Pinging

• If the EGR valve sticks closed, no exhaust gas recirculates.

• Combustion temperatures rise, leading to spark knock (pinging) or detonation, especially under load or acceleration.

3. Check Engine Light (CEL)

• The ECU (engine control unit) monitors the EGR system.

• If it detects that the EGR flow is too low, too high, or erratic, it will trigger the Check Engine Light.

• Common EGR-related codes include P0400–P0409.

4. Poor Fuel Economy

• A malfunctioning EGR valve can mess up the engine’s air-fuel ratio.

• The ECU may compensate by adding more fuel → reduced fuel efficiency.

5. Increased Emissions / Failed Emission Test

• Without proper EGR function, NOx emissions go up.

• This often causes a failed smog or emissions test.

6. Reduced Engine Performance

• A bad EGR valve can cause hesitation, loss of power, or rough acceleration, especially if it opens or closes at the wrong time.
