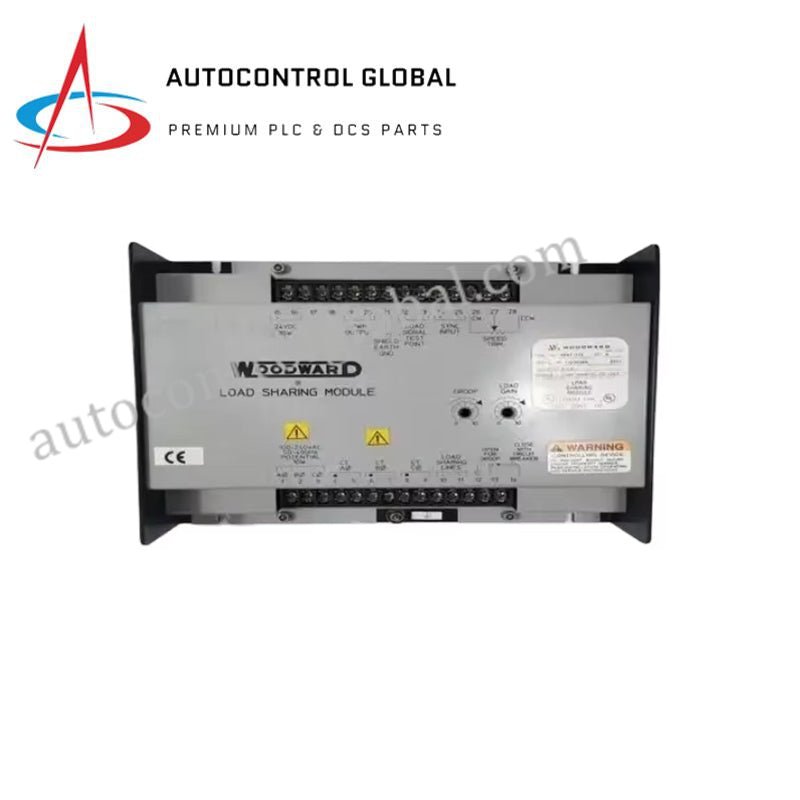

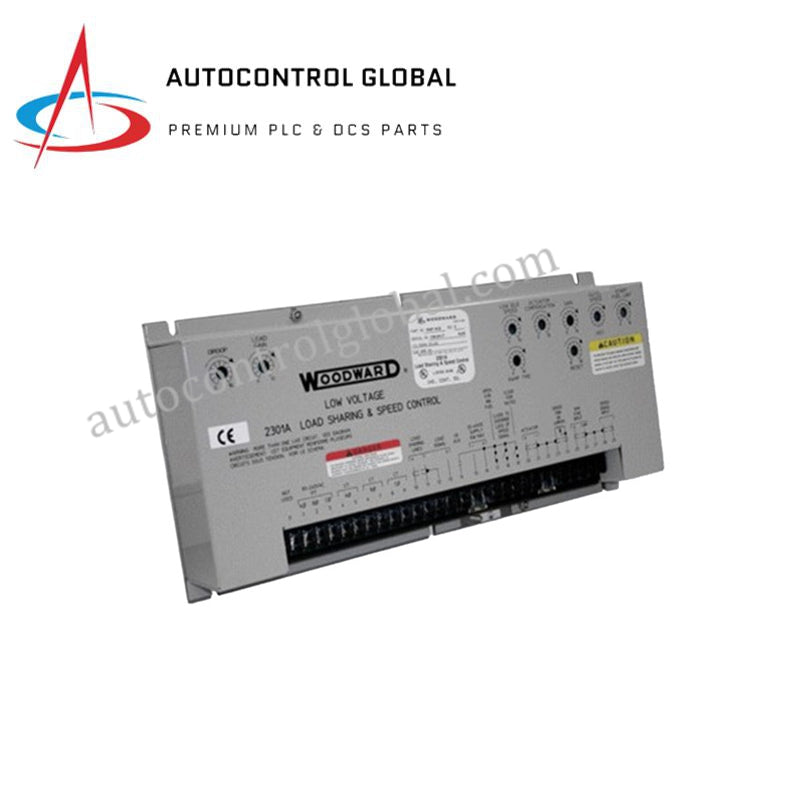

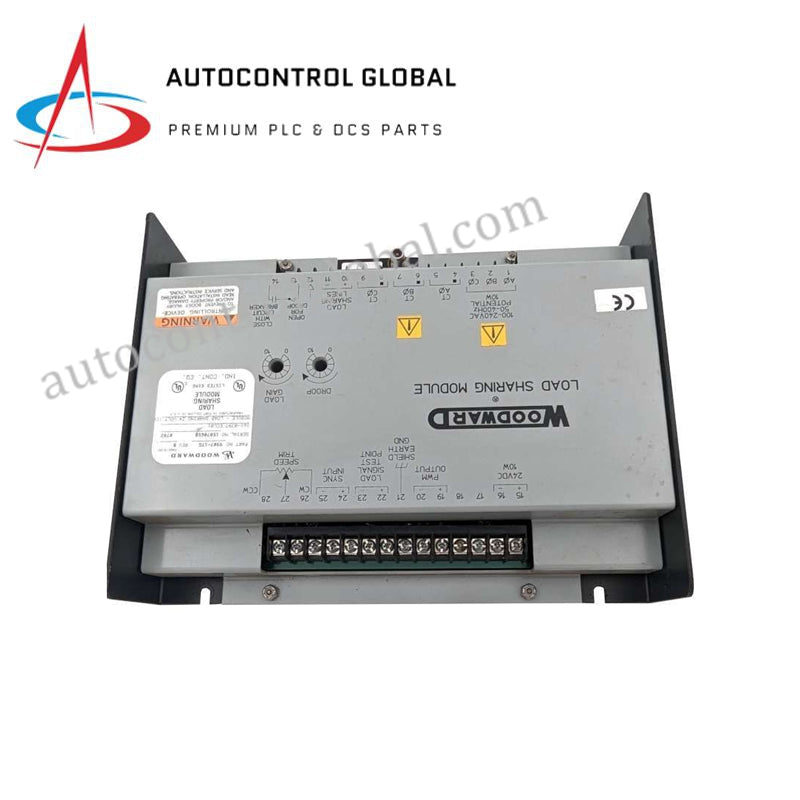

The Woodward 9907-038 is a 2301A series electronic speed and load control module designed for precise regulation of prime movers, including diesel engines, gas engines, and turbines.
This model is a low-voltage, forward-acting speed controller intended for single-actuator systems. It provides stable isochronous speed control or droop control for load sharing applications. Unlike some other 2301A variants, the 9907-038 does not include a deceleration ramp, making it suitable for systems where external ramping or mechanical damping is used.
The 2301A platform is widely deployed in power generation, marine propulsion, and industrial mechanical drive systems where reliability and deterministic speed control are critical.
Control Functions
The 9907-038 processes speed feedback from a magnetic pickup and compares it with a reference speed setpoint. Based on the selected control mode, it outputs a proportional actuator current signal to regulate fuel or steam flow.
Isochronous mode maintains constant speed under varying loads, while droop mode enables stable parallel operation and load sharing among multiple units.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model | 9907-038 |
| Series | 2301A Speed Control |
| Product Type | Electronic Speed / Load Controller |
| Control Modes | Isochronous, Droop |
| Speed Input | Magnetic pickup, approx. 1,000–10,000 Hz |
| Number of Speed Settings | Two (Low Idle and Rated Speed) |
| Power Supply | 20–40 VDC (low-voltage model) |
| Actuator Output | Forward-acting, 0–200 mA |
| Actuator Type | Single proportional actuator |
| Speed Setting Input | Potentiometer (optional 4–20 mA via interface) |
| Deceleration Ramp | Not provided |
| Power Consumption | < 5 W |
| Operating Temperature | –40 °C to +85 °C |
| Mounting | Panel or rack mounting |
| Enclosure | Sheet-metal chassis, single PCB |
| Weight | 1.2–1.5 kg |
| Certifications | CE compliant |
