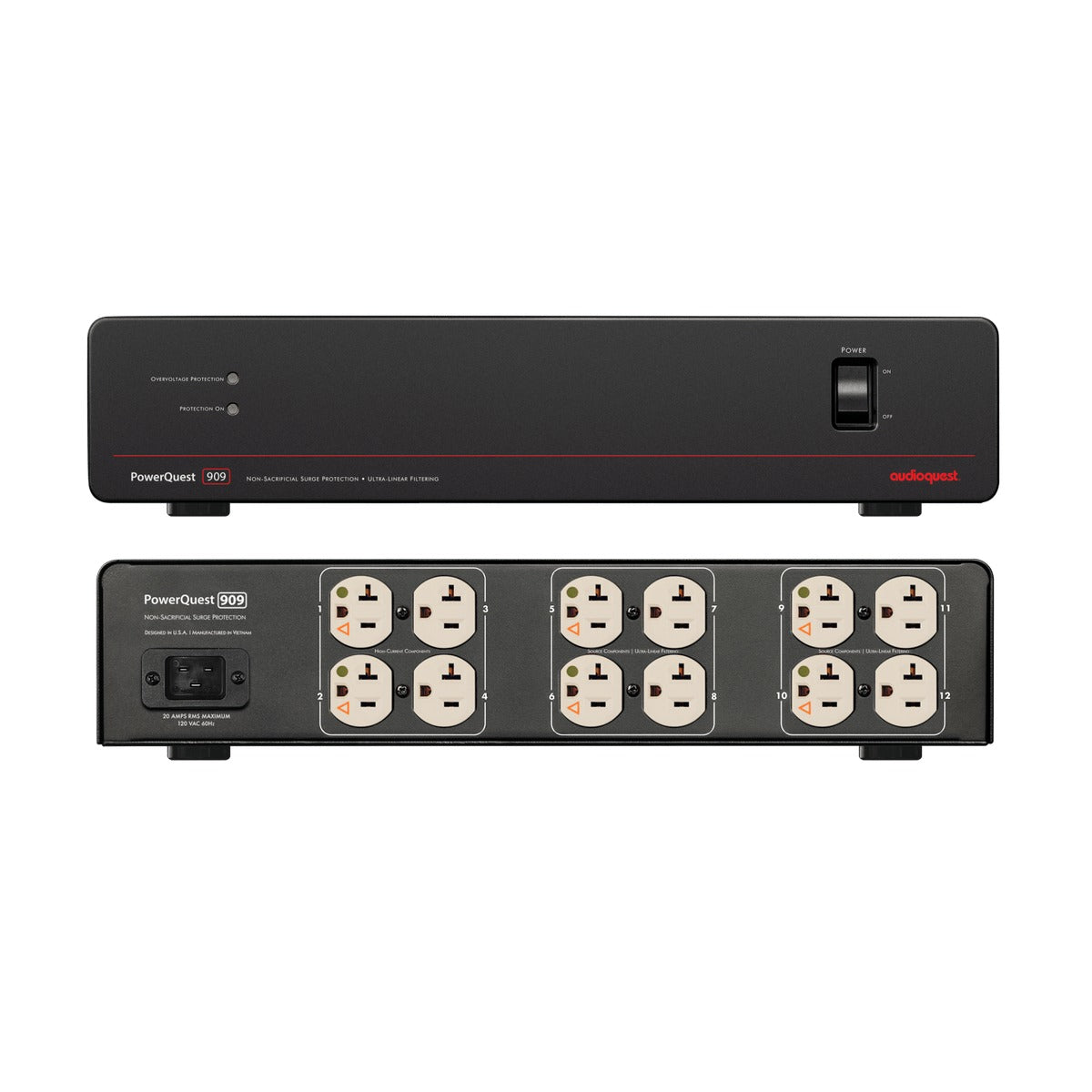

Audioquest PowerQuest 909 Power Conditioner

The new Audioquest PowerQuest 909 features 20-amp (RMS) maximum current capacity and 45-amp (peak, up to 25ms) Transient Power Correction and current reservoir. The PQ-909 delivers the uncompressed transient current necessary for all home theaters and audio systems.

The 909 features Wide-bandwidth differential and common-mode filtering contribute to an ultra-low noise floor and deep, black backgrounds. Twelve component-optimized hospital-grade outlets (4 High/Variable-Current for amps; 8 Linear-Filtered/Constant-Current for Sources and TVs) provide performance, versatility, and flexibility.

To complement its remarkable performance, the PQ-909 provides robust protection features: Extreme Voltage Shutdown and Non-Sacrificial Surge Protection, the latter capable of withstanding repeated 6000V/3000A surges — the maximum that can pass through a building’s AC electrical panel.

In addition to a 2-RU rack-mounting kit, the PQ-909 comes with a high-performance AudioQuest-designed 2m PQ-920 AC power cable — a 20A (C19) Monsoon-level cable employing Perfect-Surface Copper+ (PSC+), ZERO-Tech for uncompressed current transients, RF/ND-Tech for the ultimate in Ground-Noise Dissipation, and a flat-to-wall 45º/90º male plug to aid installations in tight spaces.

Specifications:

• Maximum current capacity: 20A RMS
• Transient current capacity: 45A peak (up to 25 ms)
• Total outlets: 12 hospital-grade outlets
• High-current outlets: 4
• Linear-filtered outlets: 8
• Filtering type: Differential-mode & common-mode noise dissipation
• Surge protection: Non-sacrificial multi-strike protection
• Surge rating: withstands repeated 6000V / 3000A surges
• Extreme voltage shutdown: Yes
• Shutdown response time: <0.25 sec
• Voltage: 120V AC
• Included power cable: PQ-920 20A high-performance cable
• Rack mount: 2U rack-mount kit included
• Width: 17 in
• Depth: 14.9 in
• Height: 3.4 in
• Weight: approx. 16.9 lb
• Color: Black
• Series: PowerQuest
• Warranty: Limited lifetime
