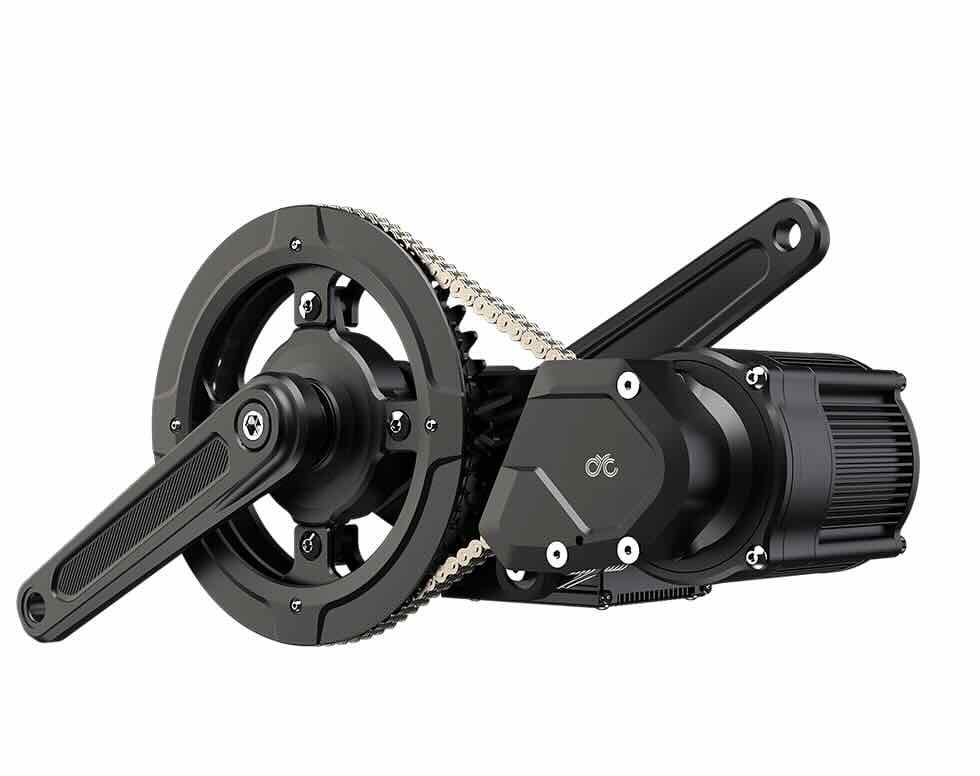

CYC X1 Pro Gen 4 5000W Mid Drive Conversion Kit

This product has many options! In your order notes, please specify :

• Chainring Size:
  - 32T with 53T motor chainring or
  -  38T with 63T motor chainring or
  - 40T with 72T motor chainring


• Crank Arm Lenght
  - 160 mm (défaut )
  - 170 mm


• Throttle Type
  - Full throttle
  - Half-twist throttle
  - Thumb throttle (default)


• Extra Options
  If you want any of these options :
• Ebike headlights ($60)
• Magnetic Brake Sensors (+$18)
• Controller extension wire with Bracket (+$25)



The X1 Pro Gen 4 is a high-powered mid-drive electric bike conversion kit made for extreme power, off-road, and utility use. Rated at 5000W and 280N.m.. Achieve the ultimate with the X1 Pro Gen 4 thanks to its advanced torque sensing, instant throttle capabilities, and customizable tuning.

Specifications

Rated power                             5000W
Peak torque                              280N.m.
Voltage compatibility                36V to 72V
Crankset                                   ISIS Splined
Controller                                 CYC X12
Mobile app compatibility           CYC Ride Control available on Android and iOS
Water/ weatherproof                Water resistant; do not submerge
Warranty period      2-year warranty excluding manmade failure

Manuals, guides, and printouts are available here.

What's in the Box

1. Motor-reduction assembly
2. 219H chainring-reduction assembly
3. Bicycle chainring with chainring cover
4. 219H golden KMC chain
5. ISIS splined bottom bracket & spindle
6. 165mm/ 175mm crank arm set
7. Gen 4 torque sensing freewheel module
8. CYC X12 controller (5000W)
9. Built-in bash guard
10. Waterproof wire harness
11. Motor hanger
12. 3, 5, & 7mm spacers for BSA threaded 68/73/83mm version / 2x 2mm spacers for BB92 version
13. SW102 (up to 52V)/ DS103 Display (up to 72V)
14. Thumb throttle/ Half-twist throttle/ Full twist throttle
15. Magnetic Bluetooth speed sensor
16. Magnetic brake sensors (optional)
17. Controller extension wire with Bracket (optional)
18. eBike Headlights (optional)
19. User manual (e-copy)
20. *Battery pack sold separately

CYC only accepts returns in the event of a defective product by manufacturer fault only within 30 days after delivery.
