- Double sealed ball bearings, mechanically locked on shaft end
- Heavy gauge steel constructions
- Bolt-on, removable rigid base
- Suitable for horizontal or vertical mounting
- Capacitor start design for high starting torque
- Capacitor start/capacitor run design for higher efficiency, as noted
- Will accept brake kits, see Accessory section
- Will accept drip cover kits, see Accessories section
General Specifications
General Specifications

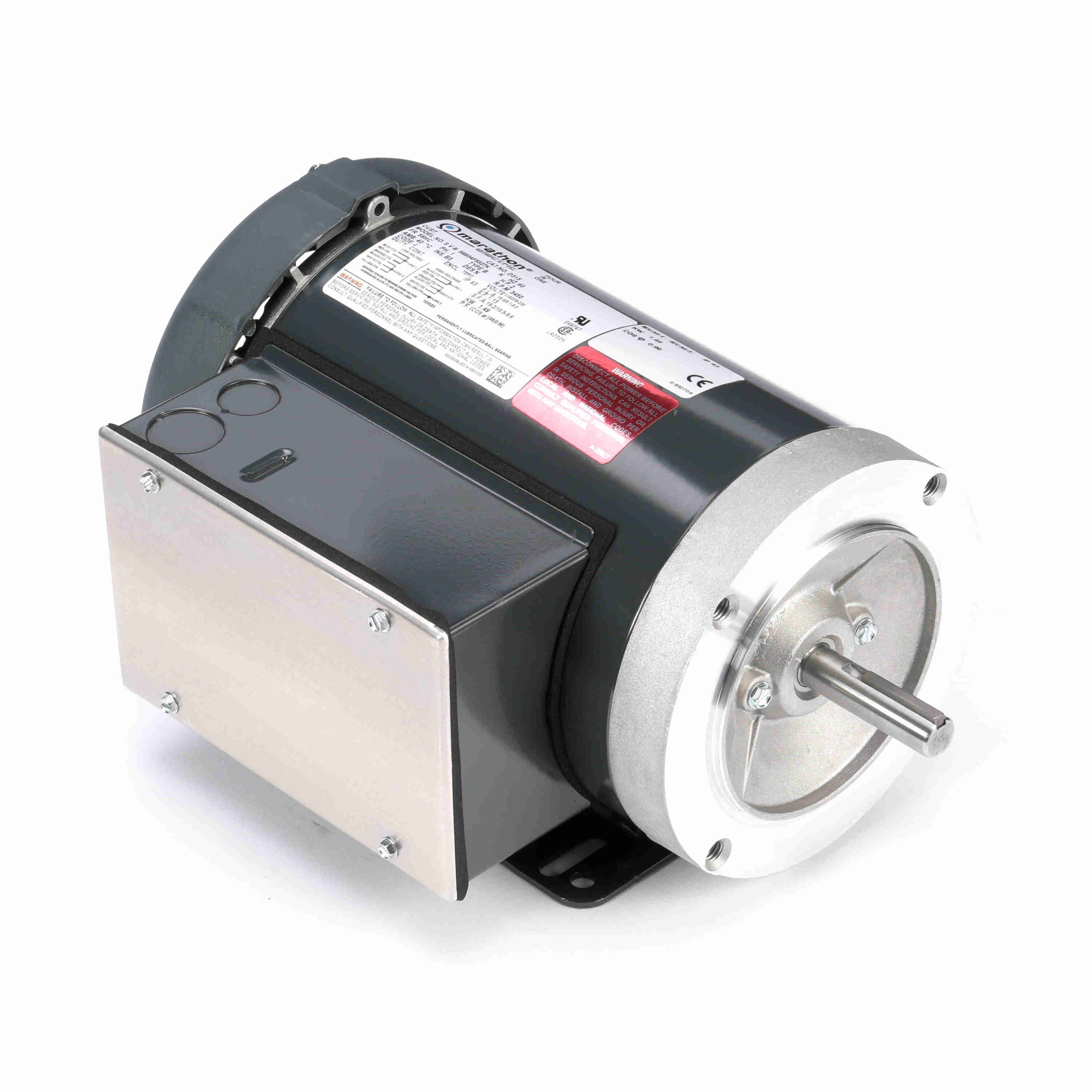

| Model : | 056B34F5327 | Catalog No : | D315 |
| Part Description : | 2,3450,TEFC,56HC,1/60/115/208-230 | Category : | Totally Enclosed Fan Cooled (TEFC) |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 2 HP | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 16.6/9.4-8.3 A | Speed : | 3450 RPM |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 79 % | Duty : | Continous |
| Insulation Class : | B | Design Code : | N |
| KVA Code : | J | Frame : | 56HC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Selective Counterclockwise |
| Mounting : | Bolt-on Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 13.31 in | Frame Length : | 8.06 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856009432 |
| Weight : | 38.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 61.10 | 736.0 | 6.72 | 226.0 | 229 | 11.40 | 0.0 | 2.00 |
| Locked-Rotor | 61.30 | 739.0 | 7.37 | 247.0 | 0 | 11.30 | 0.0 | 2.00 |
| Break-Down | 32.10 | 387.0 | 7.73 | 259.0 | 3,114 | 6.50 | 0.0 | 2.00 |
| Full Load | 8.30 | 100.0 | 2.98 | 100.0 | 3,500 | 1.89 | 0.0 | 2.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 2.10
- 0.315
- 0.0
- 65.2
- 3,600
- 0.0
- 0.00
- 25 %
- 3.30
- 0.670
- 56.1
- 88.3
- 3,577
- 0.0
- 0.74
- 50 %
- 4.90
- 1.050
- 70.8
- 93.2
- 3,555
- 0.0
- 1.47
- 75 %
- 6.65
- 1.460
- 76.4
- 95.5
- 3,530
- 0.0
- 2.22
- 100 %
- 8.30
- 1.890
- 78.5
- 96.0
- 3,510
- 59.0
- 2.98
- 115 %
- 9.60
- 2.170
- 79.0
- 98.3
- 3,500
- 80.0
- 3.45
- 125 %
- 10.70
- 2.360
- 79.2
- 95.9
- 3,489
- 0.0
- 3.77
- 150 %
- 13.10
- 2.880
- 77.7
- 95.6
- 3,456
- 0.0
- 4.56
- 175 %
- 16.00
- 3.490
- 74.7
- 94.8
- 3,413
- 0.0
- 5.38
- 200 %
- 20.10
- 4.300
- 69.4
- 93.0
- 3,341
- 0.0
- 6.29
