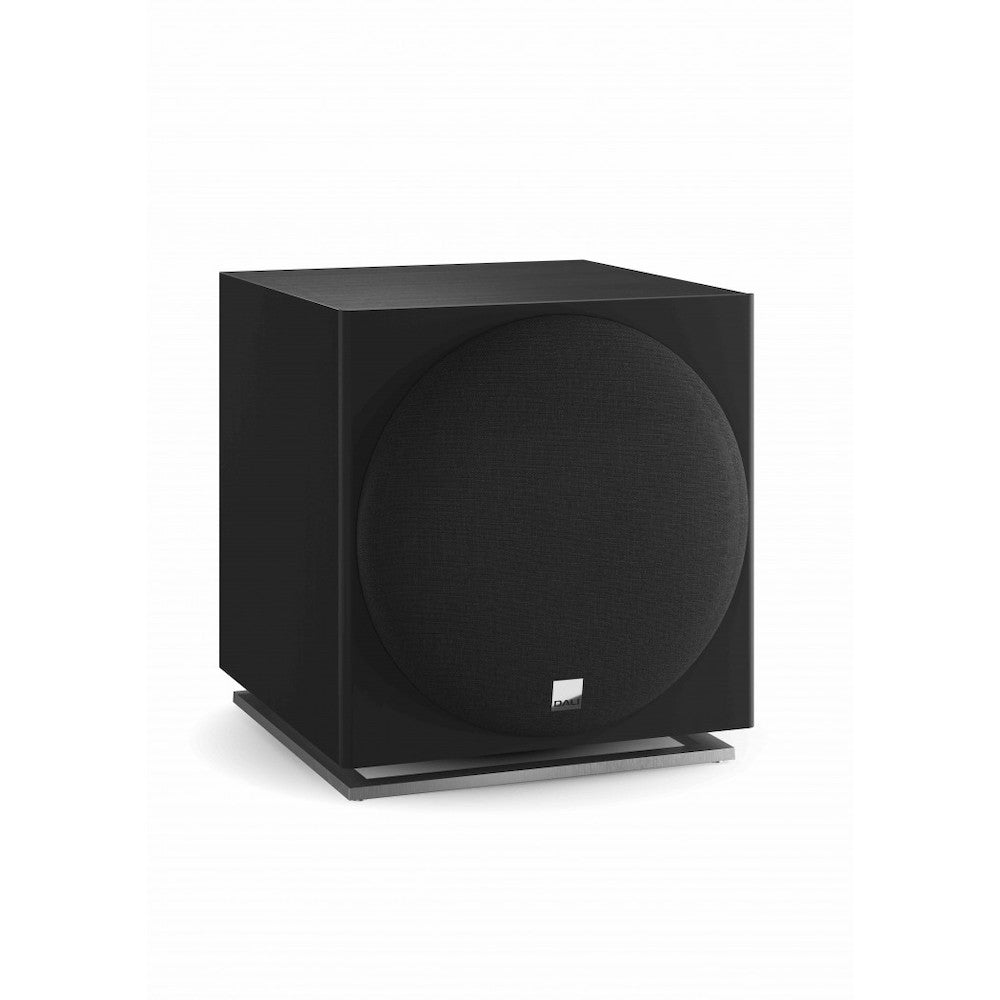

DALI E-12 F Subwoofer

Please Contact Us To Bundle A 5.1, 5.2 or other Package With The Products Of Your Choice.

• Features a 12” woofer, capable of moving air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior
• The heavy magnet system wields a massive 4-layer, long-stroke voice coil.

  The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, wellbalanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

  The back plate of SUB E-12 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

  SUB E-12 F is elevated from the floor by cone shaped rubber feet, while a down-firing bass port allows positioning directly against the wall.

Specifications:

• Frequency Range (+/-3 dB) [Hz]	28 - 190
  Maximum SPL [dB]	112
  Crossover Frequency [Hz]	40 - 120
  Low frequency driver, Quantity	1 x 12" long stroke
  Low frequency driver, Diaphragm type	Polymere Aluminimum
  Enclosure type	Bass Reflex
  Bass Reflex Tuning Frequency [Hz]	36.0
  Max. Amplifier Power Output [RMS watt]	220
  Continous IEC Power Output [RMS watt]	170
  Input Impedance [ohms]	25k
  Connection Input	Mono Line Level (LFE) RCA Stereo Line Level (low pass filtered)
  Magnetic Shielding	No
  Recommended Placement	Floor
  Recommended Distance From Wall [cm]	> 5
  Functions	Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain)
  Max. Power Consumption [W]	250
  Dimensions With Base (HxWxD) [mm]	370 x 340 x 380
  Weight [kg]	14.7
  Accessories Included	Manual Rubber Bumpers Spikes M6
