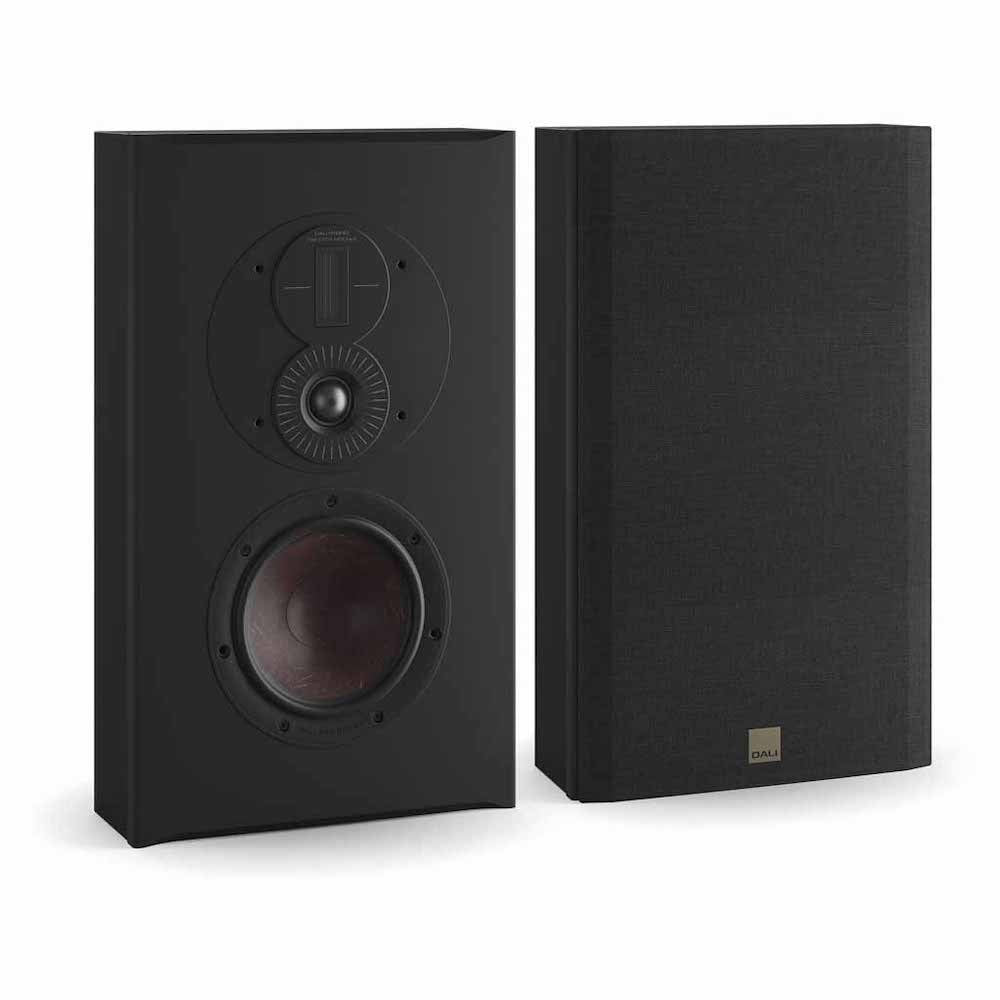

This new DALI LCR speaker incorporates all the best technologies from the OPTICON MK2 series in a low-profile, wall mounted enclosure speaker. The OPTICON LCR MK2 will also serve as wall mounted surround speaker. No matter the application, the on-wall speaker is a multi-purpose speaker with loads of use case options.
Priced PER SPEAKER.
DALI OPTICON LCR Specifications:
| Product series | OPTICON MK2 |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 70 - 30,000 |
| Sensitivity (2,83 V/1 m) [dB] | 89 |
| Nominal Impedance [ohms] | 4 |
| Maximum SPL [dB] | 109 |
| Recommended Amplifier Power [W] | 30 - 150 |
| Crossover Frequency [Hz] | 2,800 / 14,000 |
| Crossover Principle | 2 + ½-way |
| Hybrid tweeter module, Super high freq. driver, Quantity | 1 x 17 x 45 mm |
| Hybrid tweeter module, Super high freq. driver, Diaphragm type | Ribbon |
| Hybrid tweeter module, High frequency driver, Quantity | 1 x 29 mm |
| Hybrid tweeter module, High frequency driver Diaphragm type | Soft Textile Dome |
| Midrange driver, Quantity | 1 x 6 1/2" |
| Midrange driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 45 |
| Connection Input | Single Wire |
| Magnetic Shielding | No |
| Recommended Placement | On-Wall Centre / Soundbar |
| Recommended Distance From Wall [cm] | 0 - 10 |
| Dimensions With Base (HxWxD) [mm] | 482 x 285 x 128 |
| Accessories Included | Manual Rubber Feet |
| Weight [kg] | 8.0 |
