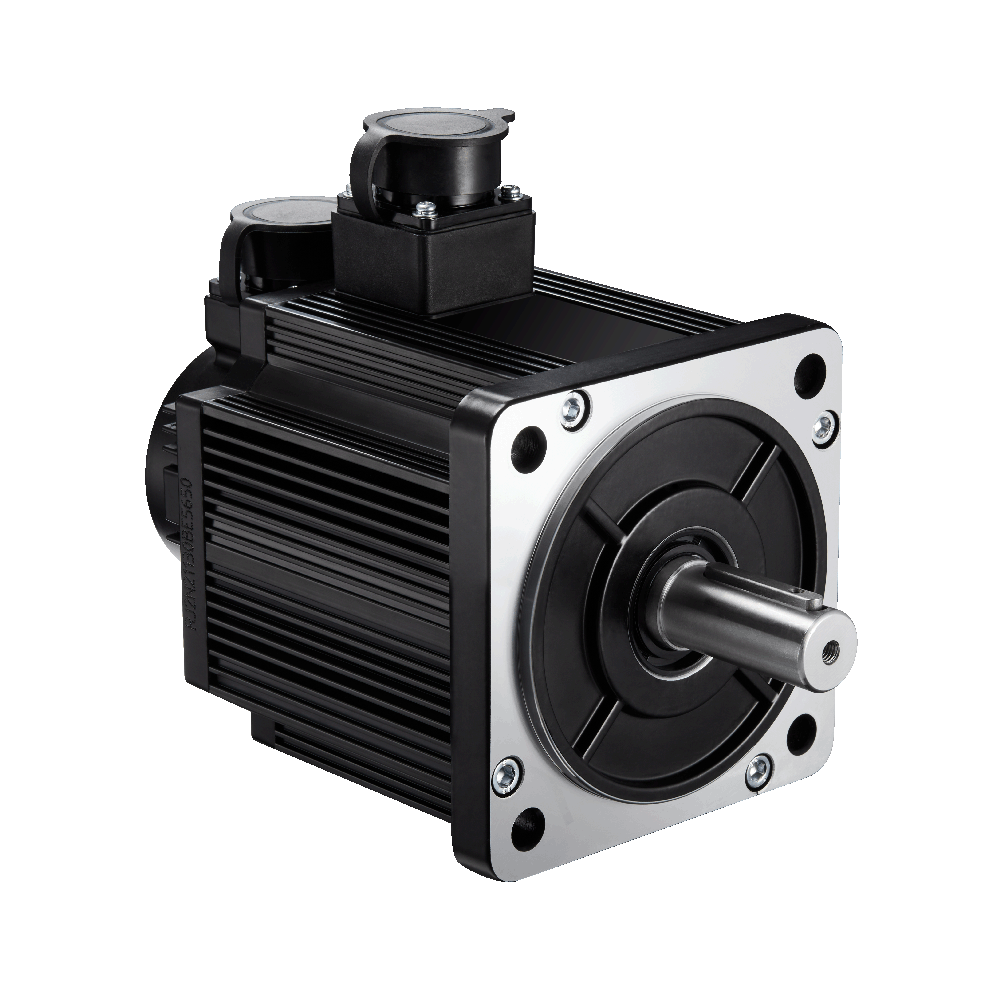

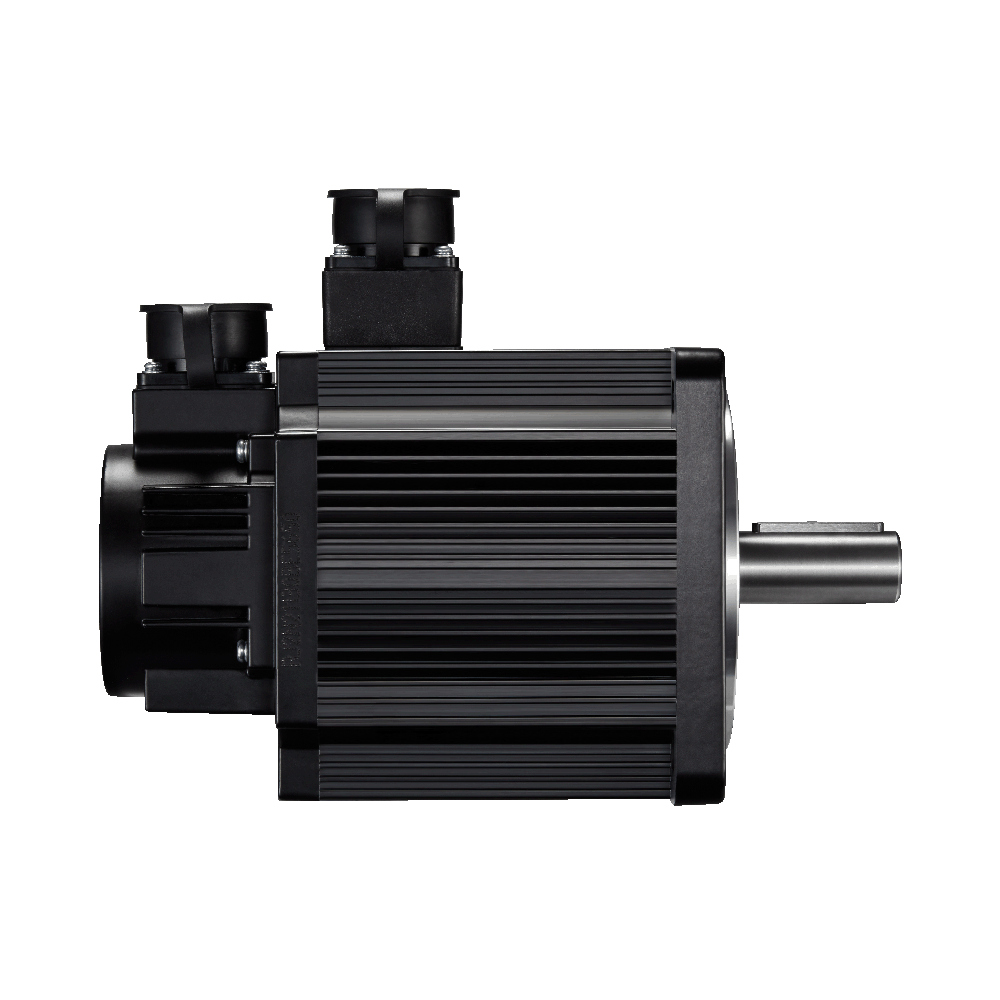

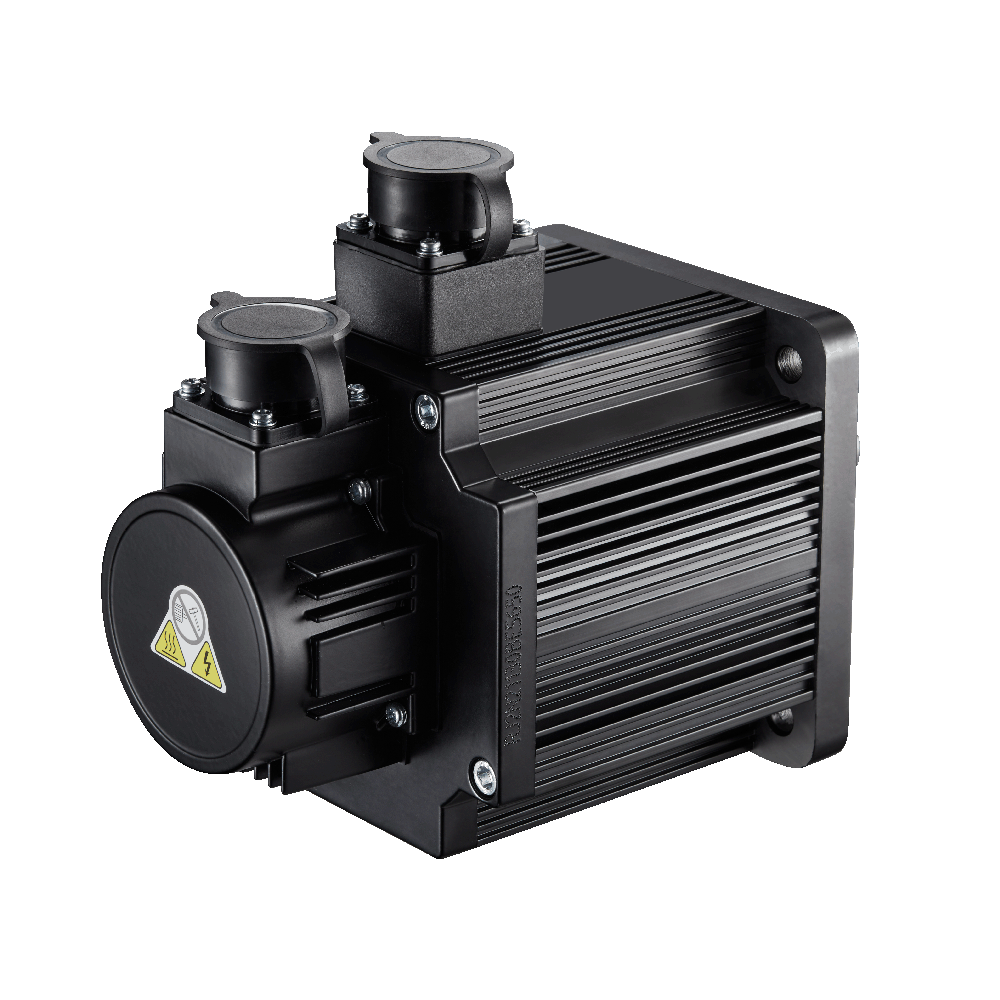

ELM2 Series Servo Motor ELM2L-2000LA100ET-H

Features of Leadshine ELM2 Series - Servo Motor ELM2L-2000LA100ET-H:

• Rated voltage 400VAC, rated power 2000W
• Frame 100mm, rated torque 6.36N·m, rated speed 3000r/min
• 23-bit optical encoder
• With brake, aviation connector
• Strong overload capacity
• IP65

Technical Data for Leadshine ELM2 Series - Servo Motor ELM2L-2000LA100ET-H:

Frame Size (mm) 100 | Rated Voltage (Vac) 400 | Rated Power (W) 2000 | Rated Torque (N.m) 6.36 | Peak Torque (N.m) 19.1 | Rated Speed (rpm) 3000 | Peak Speed (rpm) 5000 | Rated Current (Amp) 6.5 | Peak Current (Amp) 19.5 | Torque Constant (N.m/Amp) 0.98 | Back EMF Constant (V/krpm) 67.8±5% | Resistance (Ω) 0.98±10% | Inductance (mH) 10.03±20% | Inertia (kg*m2*10-4) 3.55 | Poles 8 | Encoder Type 23bit optical | IP Rating IP65 | Weight (Kg) 7.86

Click Here to Download 2D Drawings for ELM2 Series - Servo Motor ELM2L-2000LA100ET-H

Click Here to Download 3D Modelings for ELM2 Series - Servo Motor ELM2L-2000LA100ET-H
