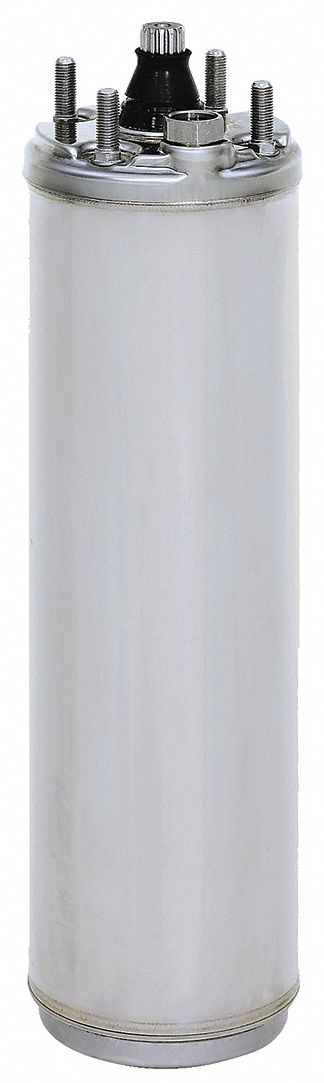

Franklin 1/3 HP Deep Well Submersible Pump Motor,Capacitor-Start,3450 Nameplate RPM,230 Voltage - 2145039004S

Deep Well Submersible Pump Motor; Motor Application: Pump; Motor Sub Application: Deep Well Submersible Pump; Motor Design: Capacitor-Start; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 1/3; Nameplate RPM: 3450; Voltage: 230; Phase: 1; Full Load Amps: 4; Max. SF Amps: 4.6; Hz: 60; Motor Service Factor: 1.75; Max. Ambient Temp.: 86 Degrees F; Thrust Rating: 300 lb; Number of Wires: 3; Motor Thermal Protection: Auto; Motor Shaft Rotation: CCWSE; Dia.: 4 in; Diaphragm Type: Pressure Equalizing; Shaft Material: Splined Stainless Steel; Shell Material: Corrosion Resistant Stainless Steel; Stator Type: Hermetically Sealed; Lead Length: 48 in; Height: 8 3/4 in; Starter Required: No; Overload Relay Required: No; RPM Range: 3001-3600
