Description

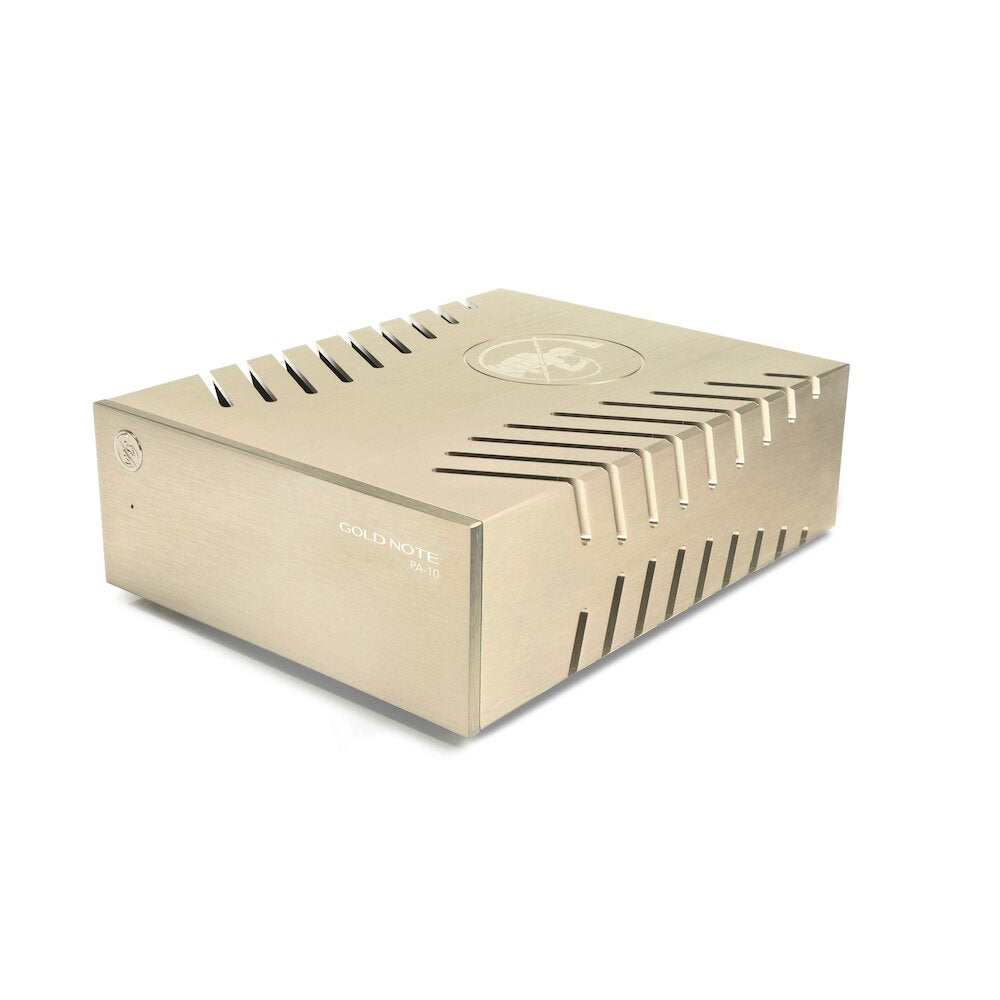

xGold Note's PA-10 EVO is a compact and versatile power amplifier, fully balanced and with high-power output, designed for modern High-End audio systems. The PA-10 EVO can be used in Stereo or Mono mode, with two units as monoblocks to get the best audio performance. Despite the size, the PA-10 EVO is extremely capable and efficient, delivering up to 140W in Stereo (8Ω) and up to 280W in Mono (8Ω). Carefully designed with select components, meticulously assembled and tested by hand, it features the ultra-solid chassis of the Series 10 in solid aluminium, inspired by the Italian style and our modular philosphy. Musically engaging and controlled, capable of driving a wide selection of loudspeakers with power and control. Thanks to the adjustable damping factor, the amp can be perfectly matched with any loudspeakers – 3-way floor-standing designs as well as mini-monitors. Featuring both balanced and unbalanced inputs, it can be connected to all sorts of sources and thanks to the GN Link technology, the amp can be easily switched ON/OFF from the source in master-slave mode.
Specifications:
POWER OUTPUT(THD 1%)
2x 140W @ 8Ω / 4Ω (Stereo)
1x 250W @ 8Ω / 4Ω (Mono)
FREQUENCY RESPONSE
5Hz-50kHz (@ -3dB)
TOTAL HARMONIC DISTORTION (THD)
0,01% (1kHz @ 1W)
DAMPING FACTOR
High = 250 or Low = 25
INPUTS AND OUTPUTS
AUDIO INPUTS
1x RCA Stereo unbalanced
1x XLR Stereo balanced
INPUT SENSITIVITY
2,5Vrms RCA/XLR
INPUT IMPEDANCE
3,6kΩ RCA
7,2kΩ XLR
AUDIO OUTPUTS
Speaker terminals: Binding posts
POWER
POWER CONSUMPTION
<1W standby
<6W no signal
POWER SUPPLY
100-240V, 50/60Hz
FUSE
5A T
DIMENSIONS AND WEIGHT
DIMENSIONS
200mm W | 80mm H | 260mm D
WEIGHT
Kg. 3 – net
Kg. 4 – boxed
FINISHES
Black, Silver or Gold anodised aluminium with a traditional brushed finish
