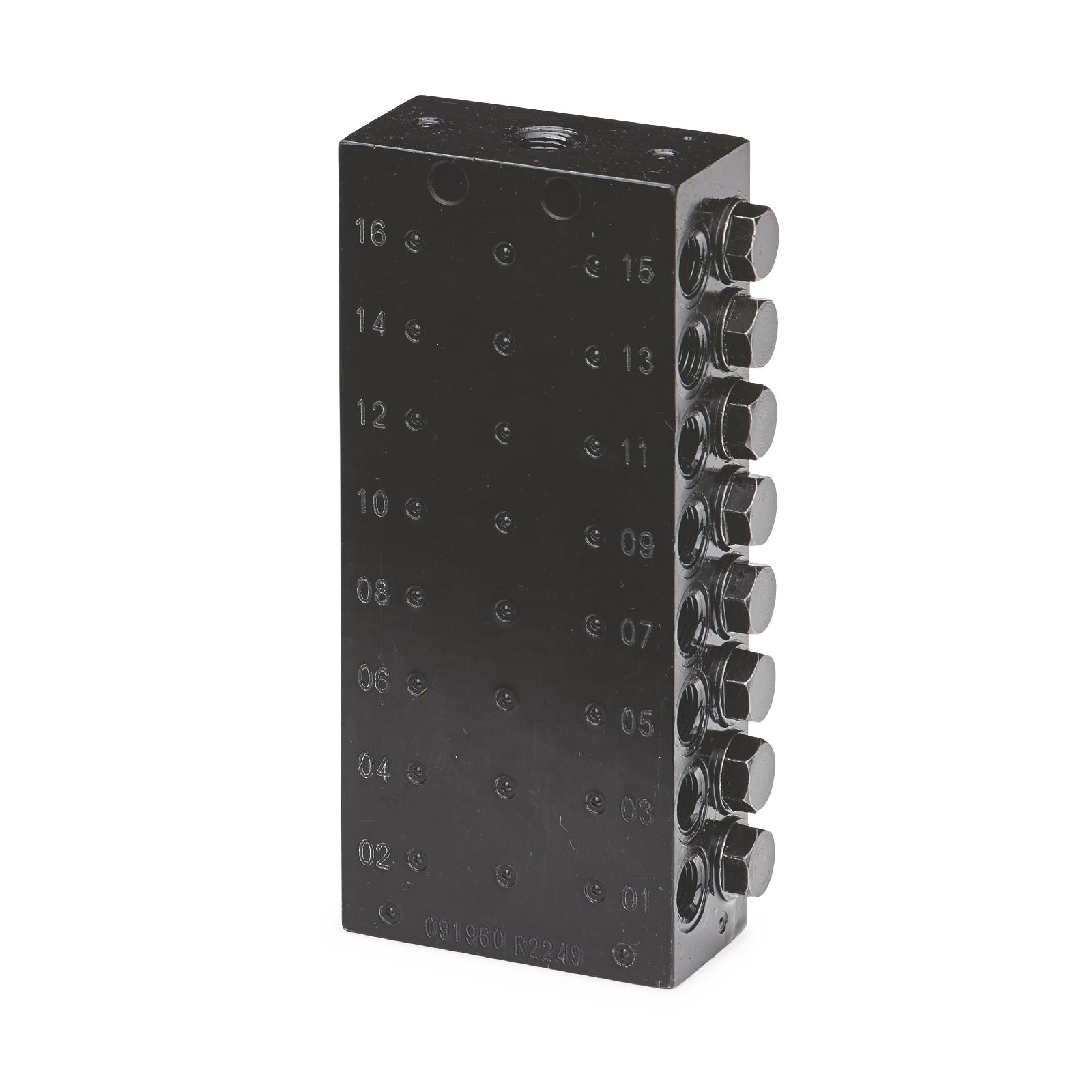

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.
Size Guide
Understanding Mylulusstore Sizing
Description
x- 1/8 in. BSPP inlet
- Space efficient design with 16 outlets, without indicator
- Outlets can be combined to meet larger bearing needs
- Built-in durability with Zinc Iron plating to stand up to harsh environments
- High output pressure - maximum working pressure of 350 bar (5076 psi) for both oil and grease
UPC Product: 00755652413325
Family Code: FAMMPM
Unit of Measure: EA
Height:
1.5 IN
| 3.81 CM
Length:
7.5 IN
| 19.05 CM
Width:
4.25 IN
| 10.795 CM
Volume:
.028 FT3
| .001 M3
Chargeable Weight:
4.44 LBS
| 2.01 KG
Technical Specifications
| Minimum Working Pressure (bar) | 15 |
|---|---|
| Maximum Working Pressure (psi) | 5076 |
| Minimum Working Pressure (psi) | 217.5 |
| Inlet Thread Type | BSPP |
| Inlet Size (in) | 1/8 |
| Number of Outlets | 16 |
| Minimum Output Volume (cm³) | 0.2 |
| Maximum Working Pressure (bar) | 350 |
| Maximum Operating Temperature (°F) | 212 |
| Cycle Indicator | None |
| Outlet Thread Type | BSPP |
| Outlet Thread Gender | Female |
| Minimum Working Pressure (kPa) | 1500 |
| Maximum Working Pressure (kPa) | 35000 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Inlet Size (mm) | 3.175 |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 100 |
| Inlet Size (cm) | 0.3175 |
| Type | Divider Valve |
| Divider Valve Series | CSP |
| Application | On-Road Vehicles, Off-Road Equipment |
| Model | Trabon |
| Series | CSP |
| Discharge Per Piston Stroke (in³) | N/A |
