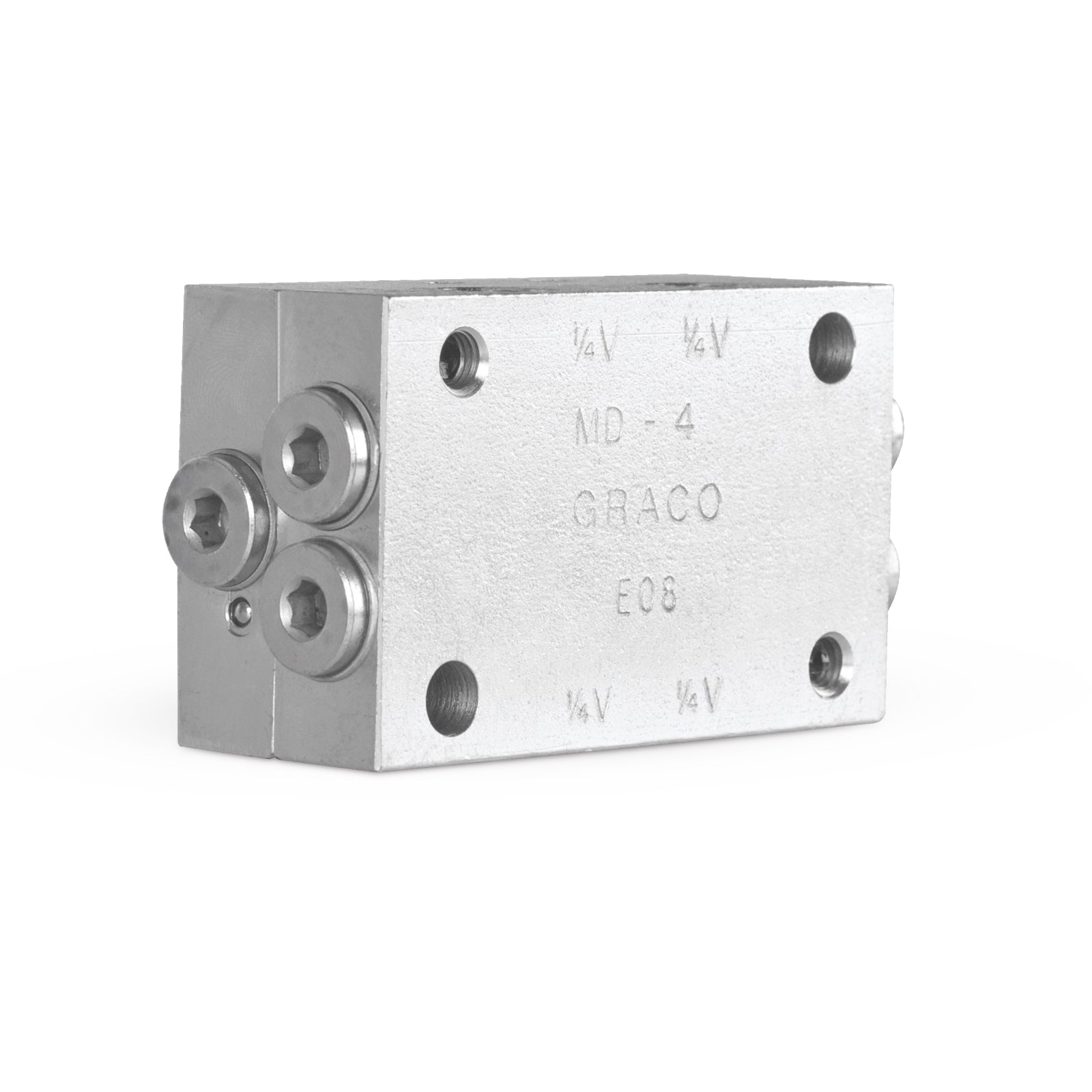

The Trabon MD Series is the most compact series progressive solution making it a perfect fit for tight spaced applications
Size Guide
Understanding Mylulusstore Sizing
Description
x- 4 outlets
- Easy to install on new or existing equipment
- Use our cycle indicator pin models to provide positive assurance of a successful lube event
- Fluoroelastomer seals for high temperature applications or synthetic lubricants
- Lubriquip part number 103-000-151
UPC Product: 633955347762
Family Code: FAMMPM
Unit of Measure: EA
Height:
1.5 IN
| 3.81 CM
Length:
3.2 IN
| 8.128 CM
Width:
5 IN
| 12.7 CM
Volume:
.014 FT3
| 0 M3
Chargeable Weight:
1.45 LBS
| .66 KG
Technical Specifications
| Maximum Cycle Rate (cycles/min) | 200 |
|---|---|
| Minimum Working Pressure (bar) | 14 |
| Maximum Working Pressure (psi) | 3000 |
| Outlet Size (mm) | 3.1750 |
| Minimum Working Pressure (psi) | 200 |
| Inlet Thread Type | NPSF |
| Inlet Size (in) | 1/8 |
| Outlet Size (cm) | 0.3175 |
| Number of Outlets | 4 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Operating Temperature (°F) | 350 |
| Inlet Thread Gender | Female |
| Cycle Indicator | None |
| Outlet Thread Type | NPSF |
| Outlet Thread Gender | Female |
| Outlet Size (in) | 1/8 |
| Maximum Working Pressure (kPa) | 20670 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Inlet Size (mm) | 3.1750 |
| Compatible Material | Oil, Grease |
| Maximum Operating Temperature (°C) | 176 |
| Inlet Size (cm) | 0.3175 |
| Type | Divider Valve |
| Divider Valve Series | MD |
| Application | On-Road Vehicles, Off-Road Equipment, In-Plant Machinery |
| Model | Trabon |
| Series | MD |
| Discharge Per Piston Stroke (in³) | 0.012 |
