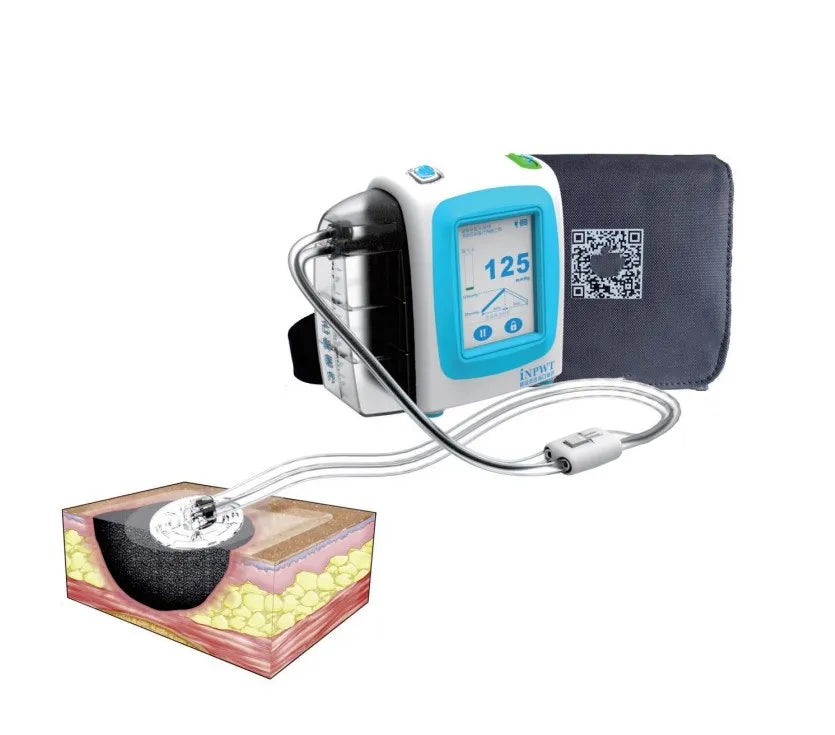

INPWT-S1 Negative Pressure Wound Therapy System Devices Wound Vac Machine And Npwt Dressing Kits

Mecical Negative Pressure Wound Therapy Pump
Model: INPWT-S1

The Mecical INPWT-S1 Negative Pressure Wound Therapy Pump is an advanced solution designed to promote effective wound healing through the controlled application of negative pressure. Compact and lightweight, it provides reliable therapy for patients in both inpatient and outpatient settings. Equipped with a colorful touchscreen and multiple safety features such as alarms for leaks, blockages, and low battery, this device ensures optimal performance and patient safety. The INPWT-S1 is easy to carry with its included bag, and it has a robust battery life that makes it ideal for continuous or dynamic treatment modes over extended periods.

Key Features:

1. Compact and Lightweight: Weighing only 0.75 kg, it’s easily portable.
2. Vacuum Range: Adjustable pressure settings from -50 to -225 mmHg for customized treatment.
3. Multiple Treatment Modes: Offers both continuous and dynamic therapy modes for tailored care.
4. Long Battery Life: 12-16 hours of operation on a single charge, with a quick 3.5-hour recharge time.
5. Touchscreen Display: Colorful, intuitive touch screen for easy operation.
6. Antibacterial Filter: Equipped with an antibacterial filter to maintain hygiene.
7. Patient Lockout Feature: Prevents unauthorized changes, ensuring safe usage.
8. Safety Alarms: Built-in alarms for leaks, blockages, and low battery for added security.
9. Canister Options: Compatible with 140ml and 450ml canisters, solidifiers included.
10. Versatile Power Input: Can be powered by an internal Li-ion battery or 110-240VAC.

Application Range:

• Chronic Wounds: Perfect for the management of diabetic ulcers, pressure ulcers, and venous leg ulcers.
• Surgical Wounds: Supports healing of postoperative incisions and grafts.
• Traumatic Wounds: Facilitates recovery in cases of burns, lacerations, and soft tissue injuries.
• Inpatient and Outpatient Care: Suitable for both hospital and home use, offering flexibility in treatment.

Custom printed waterproof band aid medical wound dressing band aid plaster for nose

• The iNPWT-S1 Unit:

  • Designed for inpatient activity therapy or outpatient homecare therapy.

• Features for the Patient:

  • Lightweight: ~0.75 Kg

  • Portable: 146×135×77 mm

  • Quiet treatment: Less than 40 dB

  • Relieve pain: Dynamic treatment mode

  • Easy, quick release 140 and 450 mL canister.

  • Alarm notifications that are easy to recognize and correct.

  • 12–16 hour battery for activities of daily living.

• Features for the Clinician:

  • iNPWT Double Tube Technology:

    • Real-time pressure feedback system.

    • Adjusts pump output to the wound site, compensating for wound distance, wound position, exudate characteristics, and patient movement.

    • Delivers & maintains prescribed negative pressure for optimal healing outcomes.

  • Seal Check Feature:

    • Designed to help clinicians and patients identify and troubleshoot negative pressure leaks.

    • Instant Feedback: Audio and visual cues are delivered in real-time, allowing easy location of dressing leaks.

    • Enhanced Therapy Confidence: A proper seal helps provide accurate delivery of prescribed therapy for optimal wound healing.

    • Possible Reduction of Unscheduled Visits: Easier for clinicians to help troubleshoot problems over the phone.

  • Other Features:

    • Colorful Touch Screen: Easy to use and Easy Set Up.

• Clinical Mechanism:

  • Continuous removal of wound exudate, creating a moist wound environment.

  • Sealing the wound, isolating the wound from infection of external origin.

  • Wound retraction, stimulation of granulation tissue formation.

  • Removal of small tissue debris by suction, reducing wound infection.

  • Consecutive improvement of microcirculation, stimulation of blood flow and oxygenation.

  • Reduction of interstitial edema.

• Patient Comfort:

  • Chronic disease management: Appropriate exercise is beneficial for blood sugar and blood pressure control.

  • Nutrition improvement: In-hospital activities or Wound homeCare, improves the quality of life of patients and improves nutrient intake and absorption.

  • Relieving anxiety, depression: Enhances the confidence of patients to heal and shape a positive therapeutic attitude.

  • Reduced medication and complications: In-hospital activities or Wound homeCare, reducing medication and allergic reactions, avoiding complications caused by prolonged bed rest.

• Exudate Management:

  • Improving blood supply.

  • Physical stimulation.

  • Tissue stretch.

  • Moist healing.

  • Infection control.

• iNPWT® Features:

  • Quiet treatment: Less than 40 dB.

  • Relieve pain: Dynamic treatment mode.

  • Odor solution: Built-in wound exudate curing agent to prevent wound exudate from shaking during activity.

  • Portable, Lightweight.

  • Colorful Touch Screen.

  • Real-time wound pressure feedback system.

  • Delivers & maintains prescribed wound pressure.

  • Carry Bag, 12–16 hour battery for activities of daily living.

  • Leaking, Blocking, and Low Battery alarm.

• iNPWT Installation:

  • Supports simultaneous irrigation and intermittent instillation.

  • Refer to clinical documentation: iNPWT Clinical Guidelines.

• Other Clinical Support Information:

  • Contact for more clinical application documents, including clinical application skills, operation videos, etc.

• iNPWT® Canister:

  • Disposable Canister for iNPWT®, reduces the risk of cross-infections.

  • Built-in wound exudate curing agent to prevent wound exudate from shaking during activity.

  • Specially designed for easy assembly and removal.

• iNPWT PU Foam Dressing:

  • Advanced iNPWT wound dressing to assist granulation tissue formation and enhance exudate removal.

  • Can be easily trimmed to fit the contours of deep or irregularly shaped wounds.

  • Can be customized for bridging techniques when treating multiple wounds.

• iNPWT Double Tube Pad:

  • iNPWT Double Tube Technology actively measures, monitors, and manages the accurate delivery of the physician’s prescribed therapy to the wound site.

  • Designed with patient comfort in mind.

  • Flexible pad material for easy application over body contours.

  • Discreet, low-profile design.

• iNPWT Drap Dressing:

  • Provides 2-3 adhesive drapes per kit to ensure the sealing of wounds.

  • 3-tier design, easy to use.

Page 6:

• Product Specifications:

  • Product: Medical Negative Pressure Wound Therapy Pump.

  • Model: iNPWT-S1.

  • Specifications:

    • Size (H×W×D): 146×135×77 mm.

    • Weight: ~0.75 Kg.

    • Vacuum Range: -50 to -225 mmHg.

    • Treatment Modes: Continuous and Dynamic.

    • Battery: 12-16 Hour, 2.2 Ah / 11.1 V.

    • Recharge Times: 3.5 Hours.

    • Canister: 140, 450 ml.

    • Solidifier with canister: Yes.

    • Display: Colorful Touch Screen.

    • Antibacterial Filter: Yes.

    • Patient lock out: Yes.

    • Carry Bag: Yes.

    • Alarms: Leaking, Blocking, and Low Battery.

    • Power Input: Internal Lion Battery or 110-240 VAC.

• Flow Comparison (L/min, Load –100 mmHg Vacuum):

  • iNPWT-S1: ~2.4.

  • Renasys Go Outpatient: ~2.3.

  • info V.A.C. Inpatient: ~3.3.

  • ActiV.A.C. Outpatient: ~2.1.
