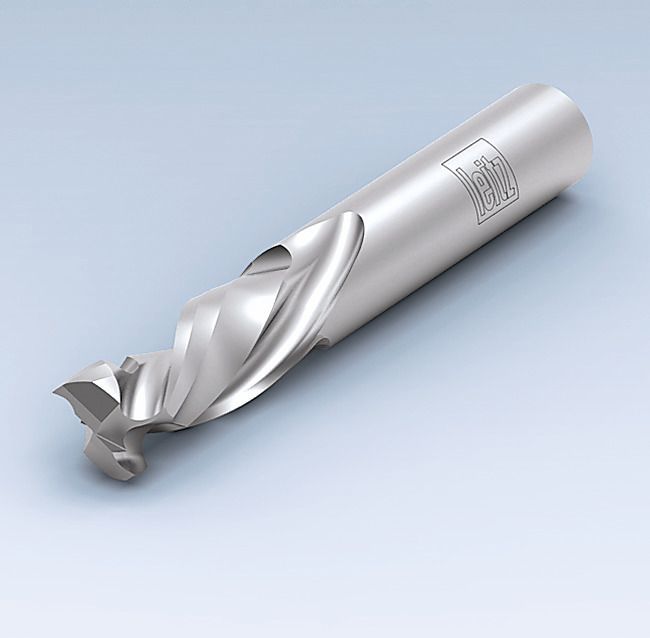

Leitz Compression Cutter 3 Flute 9.5 mm (3/8) 60126AU (Recommended for Chipboard & HMR)

Free delivery on 5 and 10-packs

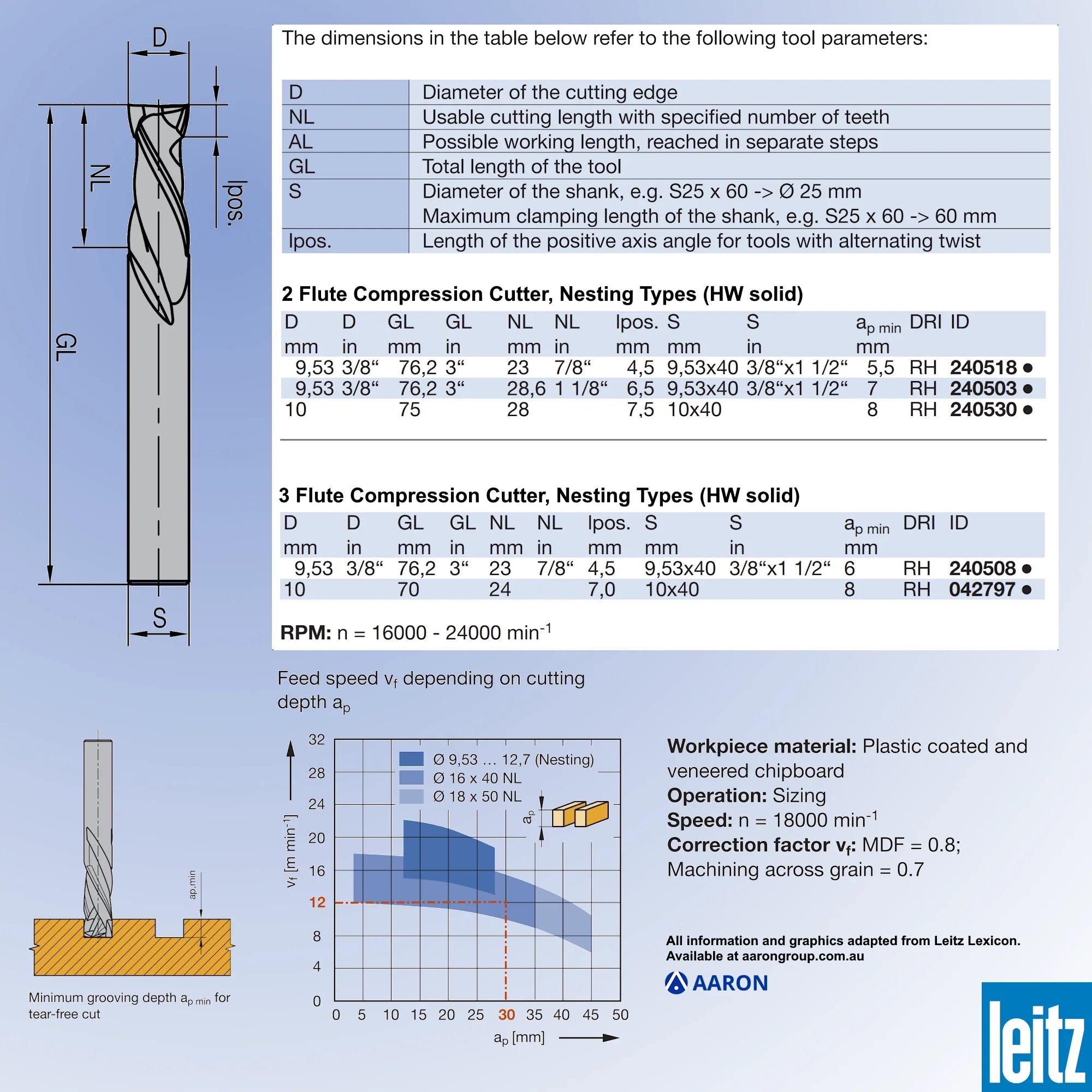

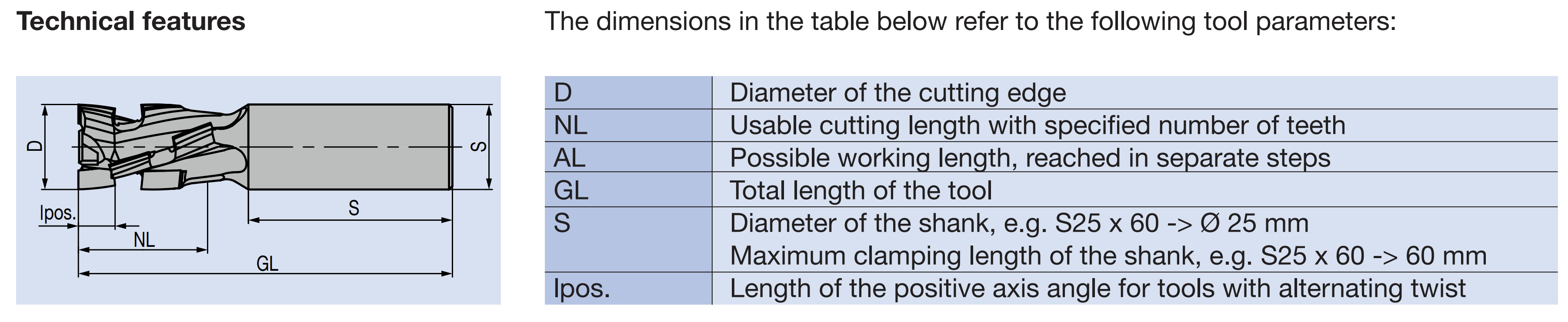

Technical Specifications

Brand: Leitz

Type: Compression Cutter

Diameter : 9.53 mm (3/8 in)

Flutes/Wings: 3 (Three)

Cutting Length: 23 mm (7/8 in)

Overall Length: 76.2 mm (3 in)

Alternate Twist Length: 4.5 mm

ID: 60126AU

How to Pick 2 Flute or 3 Flute?

2 flute cutters have larger flutes, allowing for better chip evacuation and improved dust extraction for MDF. Efficient chip flow prevents clogging, heat buildup, and excessive tool wear, ensuring sharper cutting edges for longer tool life. Since heat is the main cause of tool deterioration, maintaining good chip flow is crucial for durability.

When cutting MDF and chipboard, using a dedicated cutter for each material provides significant advantages:

• MDF contains fine dust that can build up on the tool when heat and poor chip flow are present. A 2-wing cutter helps reduce this buildup, extending tool lifespan
• Chipboard is more abrasive than MDF and wears cutting edges unevenly, potentially leaving streaks. While this isn’t as noticeable on chipboard, it’s highly visible on MDF

3 flute cutters are ideal for chipboard/HMR, as they provide a smoother finish and enable higher feed rates for faster production speeds without excessive wear.

For optimal performance, use a 2-wing cutter for MDF and a 3-wing cutter for chipboard/HMR, ensuring clean cuts, reduced heat, and extended tool life.
