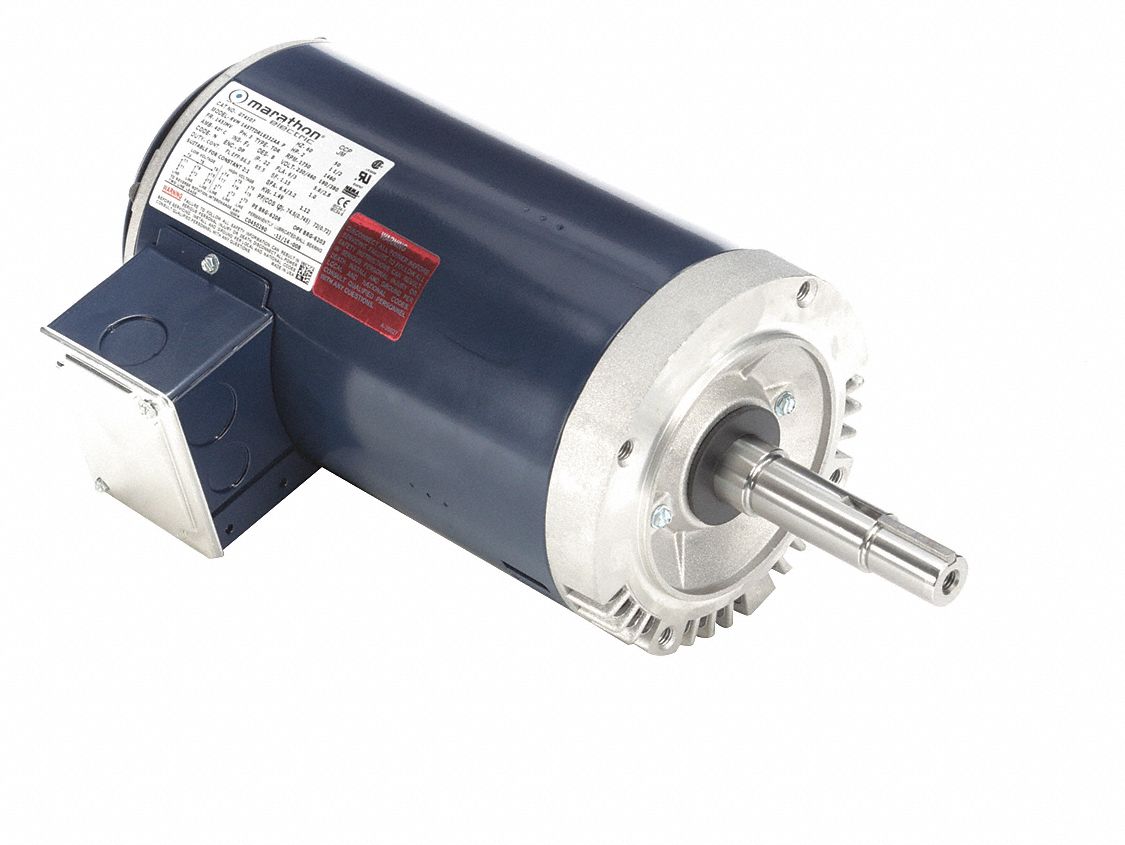

Marathon Motors 2 HP Close-Coupled Pump Motor,3-Phase,1750 Nameplate RPM,230/460 Voltage,145JM - 145TTDR16332

Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 2; Nameplate RPM: 1750; Frame: 145JM; Motor Shaft Rotation: CW/CCW; Voltage: 230/460; Full Load Amps: 6/3; Phase: 3; Hz: 60/50; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 4 1/4 in; Motor Shaft Design: JM Threaded; Length Less Shaft: 11 11/16 in; Overall Length: 15 15/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 85.5 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; Inverter Rated: Yes; Standards: CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
