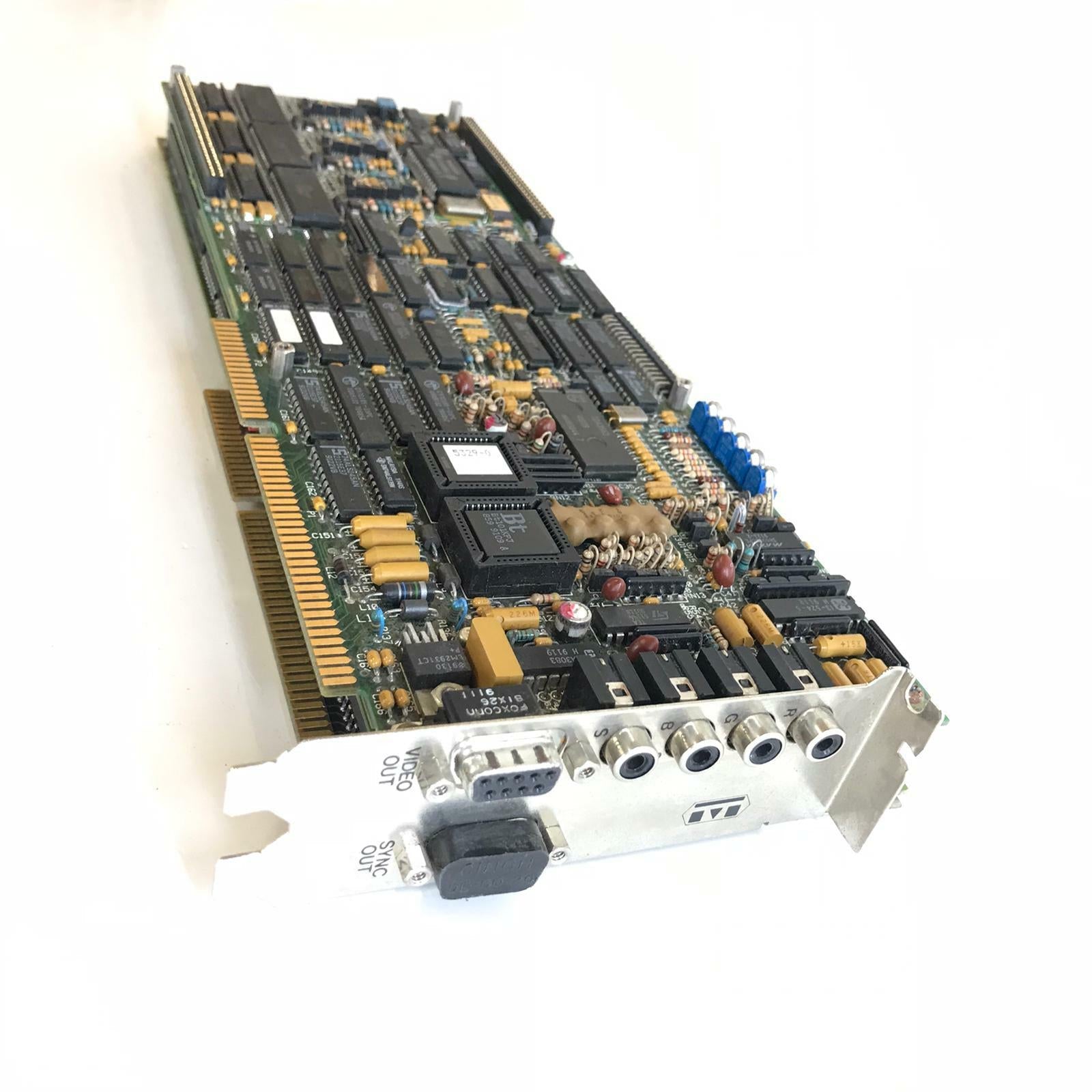

Matrox MVP-AT Hardware Accelerated Image Processing Board 0273-06-04 0272-06-03

Matrox MVP-AT Hardware Accelerated Image Processing Board – 0273-06-04 / 0272-06-03

Key Specifications

• Model Series: MVP-AT (Matrox Video Processor – Advanced Technology)

• Part Numbers:

  • 0273-06-04 (main board)

  • 0272-06-03 (associated or daughter board)

• Function: Real-time image processing and hardware acceleration

• Interface: ISA (Industry Standard Architecture) bus

• Image Processing Capabilities:

  • Real-time acquisition

  • Edge detection

  • Filtering, scaling, and pattern recognition

  • Support for grayscale and monochrome video

• Video Input Support: Analog video capture capability (composite or monochrome)

• Memory: Onboard frame buffer and dedicated processing memory (application dependent)

• Application Areas: Industrial machine vision, quality inspection, automated optical inspection (AOI), legacy lab equipment

Overview
The Matrox MVP-AT is a legacy hardware image processing board designed for high-speed, real-time video analysis in embedded or industrial systems. Often paired with analog cameras, this board offloads image processing tasks from the host CPU, enabling efficient execution of vision algorithms in inspection or automation workflows. The dual board set—identified by part numbers 0273-06-04 and 0272-06-03—was commonly used in older ISA-based systems for machine vision and continues to serve as a reliable solution for supporting or restoring legacy imaging platforms.
