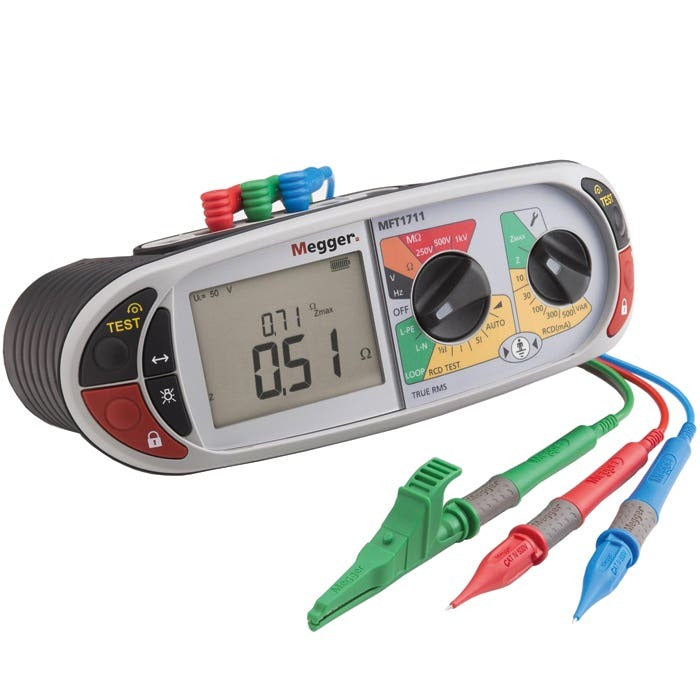

xMegger MFT1711 Multifunction Tester
Supplied with a free traceable Calibration Certificate
The Megger 1711 multifunction tester is suitable for use on domestic, commercial and industrial fixed wire low voltage installations in accordance with the requirements of BS7671.
What's New for the 1711?
As the new version of the 1710, the 1711 comes with a selection of brand new features for an entry-level electrical installation testing tool.
These include:
- Expanded Insulation Resistance Test Voltage Range to 1kV (1000V) - in the past, the 1000V test voltage was only found on higher-end models in the series
- Max Zs Display - testing final ring circuits? It's quick and easy thanks to the new, large-size Max Zs display on the Megger 1711. There's no need to write down Zs values as you check every socket on a ring; the 1711 will automatically identify and store the highest value you measure
- True RMS Voltage Measurements - rest assured that your AC voltage measurements are as accurate as possible, even on irregular waveforms, thanks to true RMS included as standard
- Automatic RCD Testing - take the hassle out of testing RCDs as the Megger 1711 will do it all for you complete with 10mA RCD and programmable (VAR) RCD compatibility. There's no need to press the test button - tests will start automatically when you apply probes to the circuit (this also works for continuity/loop testing)
Wide Range of Electrical Installation Testing Procedures
When you're using the Megger 1711 multifunction tester, you'll see just how much easier your electrical testing can truly become.
The 1711 gives you quick, easy access to all of your testing procedures via colour-coded rotary dials and dual testing buttons on either side of the MFT make it easy to activate a test, regardless of where you're working.
You can expect all of the following measurement procedures when using the MFT1711:
- Continuity/Resistance - complete with 200mA range and automatic continuity test start
- Insulation Resistance - including test voltage display, full protection against live circuits and selectable test voltages of 1kV (1000V), 500V and 250V
- Earth Loop Impedance - 2-wire no trip test (L-PE), 3 wire no trip test (L-PE), 2 wire high current testing and the ability to display PSCC or PFC calculations alongside loop resistance for easier measurements. Also includes the Zmax value function
- RCD - compatible with 10, 300, 300 and 500mA RCDs, as well as type A, AC, S and programmable RCDs. Can perform 1/2, I, I and 5 I tests plus includes automatic RCD tests, ramp tests, 0 and 180° phase angle and touch voltage display from 0 to 230V
- Voltage Measurements - measure AC/DC voltage from 10V to 600V with true RMS accuracy on AC
Keeping You Safe When Testing
Accidents happen, so the Megger 1711 is made tough and the to the highest standards of safety. As an entry-level tool, having protection in place means the MFT1711 is ideal for new electrical installers who are still training or newly qualified, ensuring that you don't accidentally connect things up wrong or cause potential danger to yourself or others.
The MFT1711's safety features include:
- Test Lock Out - the MFT1711 will block the test from going ahead if there's live voltage on a circuit when you're trying to measure insulation resistance
- Safe Contact Detection - audible and visual warnings let you know when you've done something wrong
- Automatic Discharge - the 1711 will discharge itself after testing, ensuring your safety at all times
- Dust and Weatherproof Casing Rated to IP54 - use the MFT1711 confidently in all conditions
- CAT IV 300V Safety Rating - work on any part of an installation without having to carry out risk assessments about the level of supply transients present
What's Included?
- Megger MFT1711-BS Multifunction Tester
- Hard Carrying Case
- Printed Quick Start Guide
- Full User Guide on CD
- Calibration Certificate
- Megger Neck Strap
- 3 Wire Lead Set with Probes + Clips
- Mains Plug Test Lead (BS1363)
Megger MFT1711, MFT1721 and MFT1731 Technical Specifications
Please be aware that not all features are available for every model. If a feature is not included on a model, there will be a note next to each section.
| Insulation Tests | |
| Output Voltage | -0 to +20% at rated load or less |
| Voltage Display | ±3% ±3 digits ±0.5% of rated voltage |
| Short Circuit Current | 1.5mA nominal test current |
| Test Current on Load | 1mA at min pass values of insulation |
| Insulation Accuracy | |
| 1000V | 10kΩ to 999MΩ (±3% ± 2 digits) |
| 500V | 10kΩ to 500MΩ (±3% ± 2 digits) |
| >500MΩ (±10% ± 4 digits) | |
| 250V | 10kΩ to 250Ω (±3% ± 2 digits) |
| >250MΩ (±10% ± 4 digits) | |
| 100V | 10kΩ to 100MΩ (±3% ± 2 digits) |
| >100MΩ (±10% ± 4 digits) | |
| Resistance and Continuity | |
| Range and Accuracy | 0.01 to 99.9Ω (±2% ± 2 digits) |
| 100 to 99.9kΩ (±5% ± 2 digits) | |
| Open Circuit Voltage | 5V ± 1V |
| Test Current (0 to 2Ω) | 205mA ±5mA |
| 15mA ±5mA (user selectable) | |
| Loop Test | |
| Live to Earth/Neutral Supply | 48 to 280V (45 to 65Hz) |
| Live to Live Supply (Not Available on MFT1711) | 48 to 500V (45 to 65Hz) |
| L-N/L-L Tests | ±5% ±5 digits |
| L-E Tests | 0.1 to 39.9Ω (±5% ±5 digits ± noise margin) |
| 40Ω to 1000Ω (±10% ± 5 digits) | |
| Display Range | 0.01 to 1000Ω |
| Live to Earth PFC Range | 20kA |
| Live to Live PSCC Range | 20kA |
| RCD Tests | |
| Supply up to 100mA | 48 to 480V (45 to 65Hz) |
| Supply up to 1A | 48V to 280V |
| RCD Type | Type AC, A and S |
| No-Trip Test (1/2xI) | -10 to -0% |
| Trip Test (1xI, 2xI and 5xI) | +0 to +10% |
| Ramp Test Touch Voltage (0 to 253V) | ±5% +15% ±0.5V |
| Trip Time | ±1% ±1ms |
| Trip Current | ±5% |
| Step Increments | |
| VAR (Variable RCD Selection) | |
| 10mA to 50mA | 1mA steps |
| 50mA to 500mA | 5mA steps |
| 500mA to 1000mA | 10mA steps |
| Supply Measurement | |
| Voltage | 10V to 600V (15 to 400Hz) True RMS |
| Voltage Accuracy | ±3% ±1V ±2 digits |
| Phase Rotation Indication | L1-L2-L3 and L1-L3-L2 |
| Frequency | 15Hz to 99Hz (±0.5% ±1 digit) |
| Frequency Resolution | 0.1Hz |
| Power Supply | |
| MFT1711 and MFT1721 | IEC LR6 type AA alkaline batteries |
| MFT1731 | 1.2V NiMH Rechargeable Batteries Mains charger for on-board recharging (4 hours typical) 12V optional car charger available |
| Earth/Ground Test (MFT1731 Only) | |
| Resolution | 0.01Ω |
| Current | 0.45mA or 4.5mA |
| Noise Rejection | 20V pk/pk (7V rms) |
| Max Probe Resistance (Rp and RC) | 100kΩ @ 50V |
| 5kΩ at 25V | |
| 2 and 3 Pole Method | 0.01 to 1.999kΩ (±2.0% ± 3 digits) |
| ART method (1.00Ω to 1.999kΩ) with accuracy of ±5.0% ± 3 digits | |
| Stakeless Method | 1.00 to 199Ω (±7.0% ± 3 digits) |
| Current (Via Optional Clamp Meter) | |
| Range | 0.1mA to 200A AC (5.0% ± 3 digits) |
| Resolution | 0.1mA |
| MV Sensor Input (MFT1721 and MFT1731) | |
| Including Temperature | 0.0mV to ±199.9mV DC (±1.0% ± 2 digits) |
| Resolution | 0.1mV |
| Data Storage (MFT1731 Only) | |
| Capacity | 1000 results |
| Communication | Bluetooth |
| Safety | |
| IEC 61010-1: 2010 IEC 61010-30: 2010 IEC 61010-031: 2008 600V CAT III / CAT IV 300V (Max phase to phase 600V) IEC 61557: 2007 parts 1 to 10 | |
| EMC | IEC61326 edition 2 location class B |
| Operating Temperature Range and Humidity | -10 to +55°C (90% RH at +40°C max) |
| Storage Temperature Range and Humidity | -25 to +70°C |
| Maximum Altitude | 2000m |
| Weight (Instrument and Case) | 1kg (with batteries) |
| Dimensions (Instrument and Case) - MFT1711 and MFT1721 | 150mm x 85 x 235mm (H x W x D) |
| Dimensions (Instrument and Case) - MFT1731 | 220 x 390 x 285mm (H x W x D) |
| IP Rating | IP54 |
| Calibration Temperature | +20°C |
| Temperature Coefficient | <0.1% per °C |
