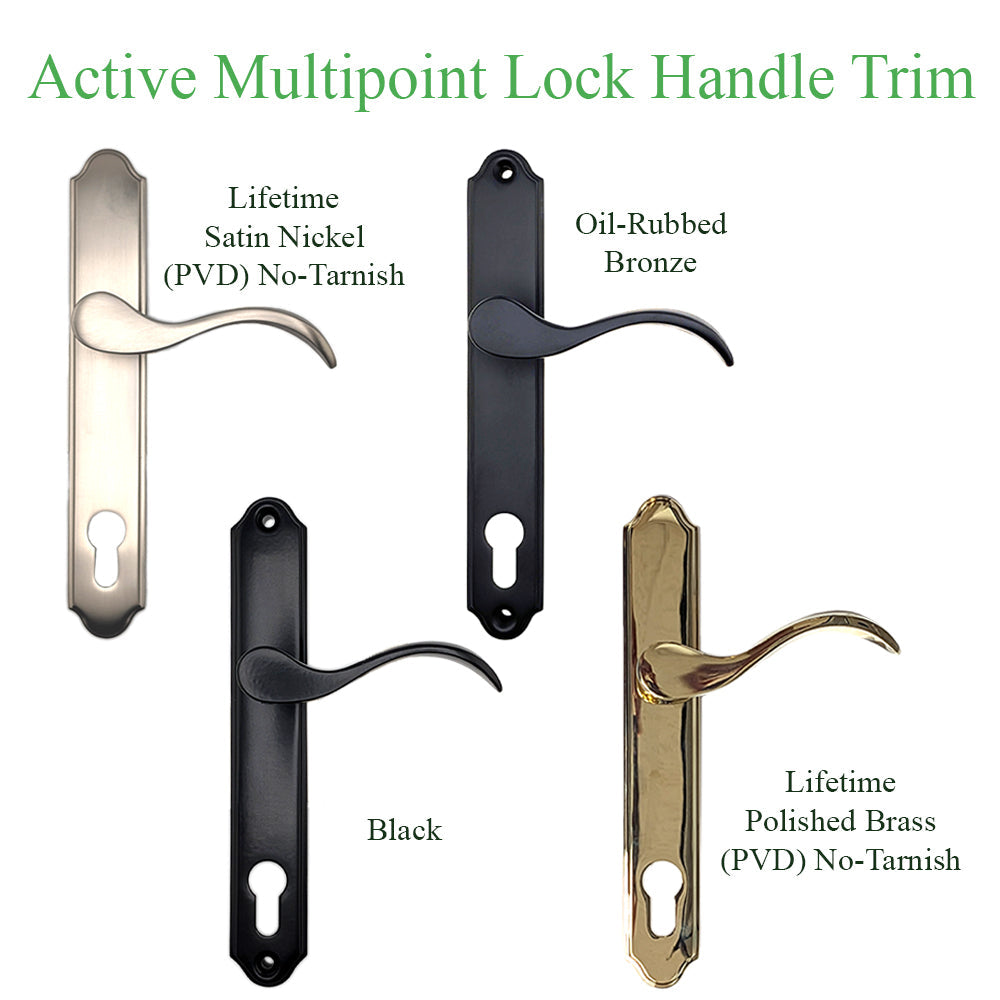

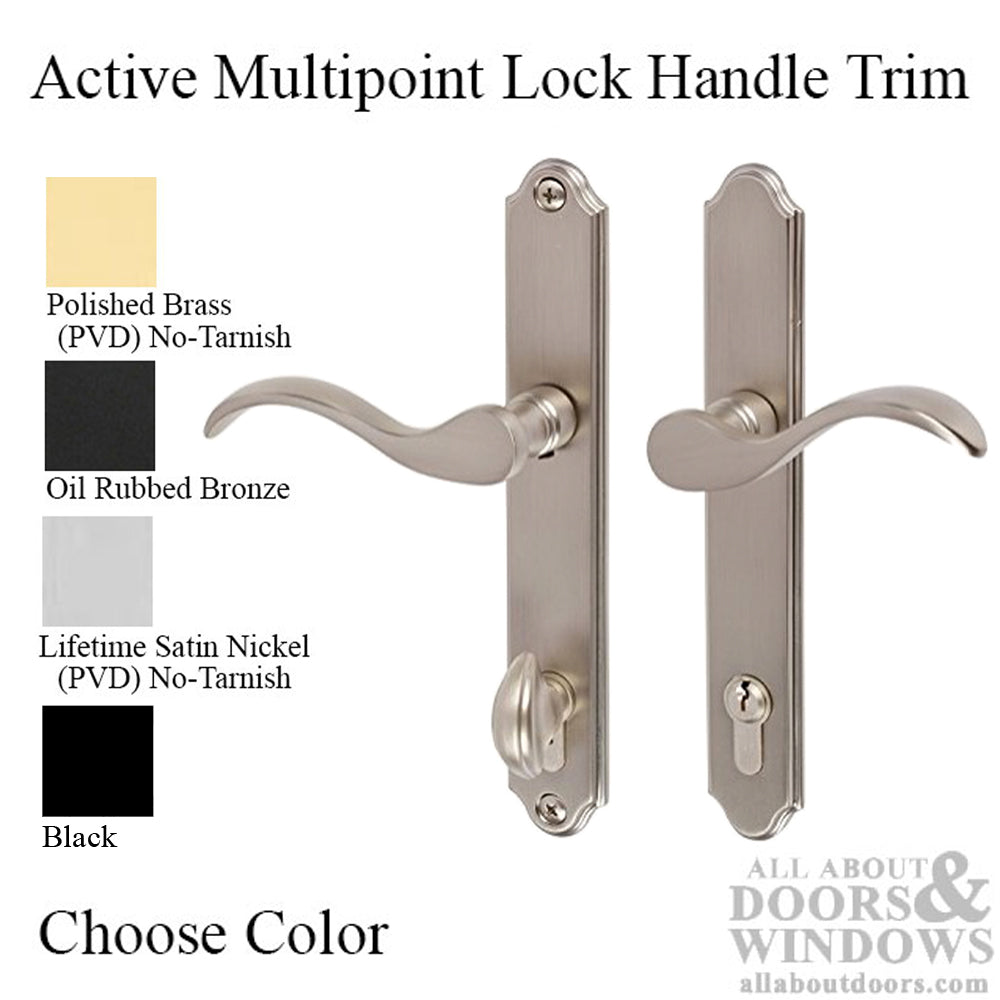

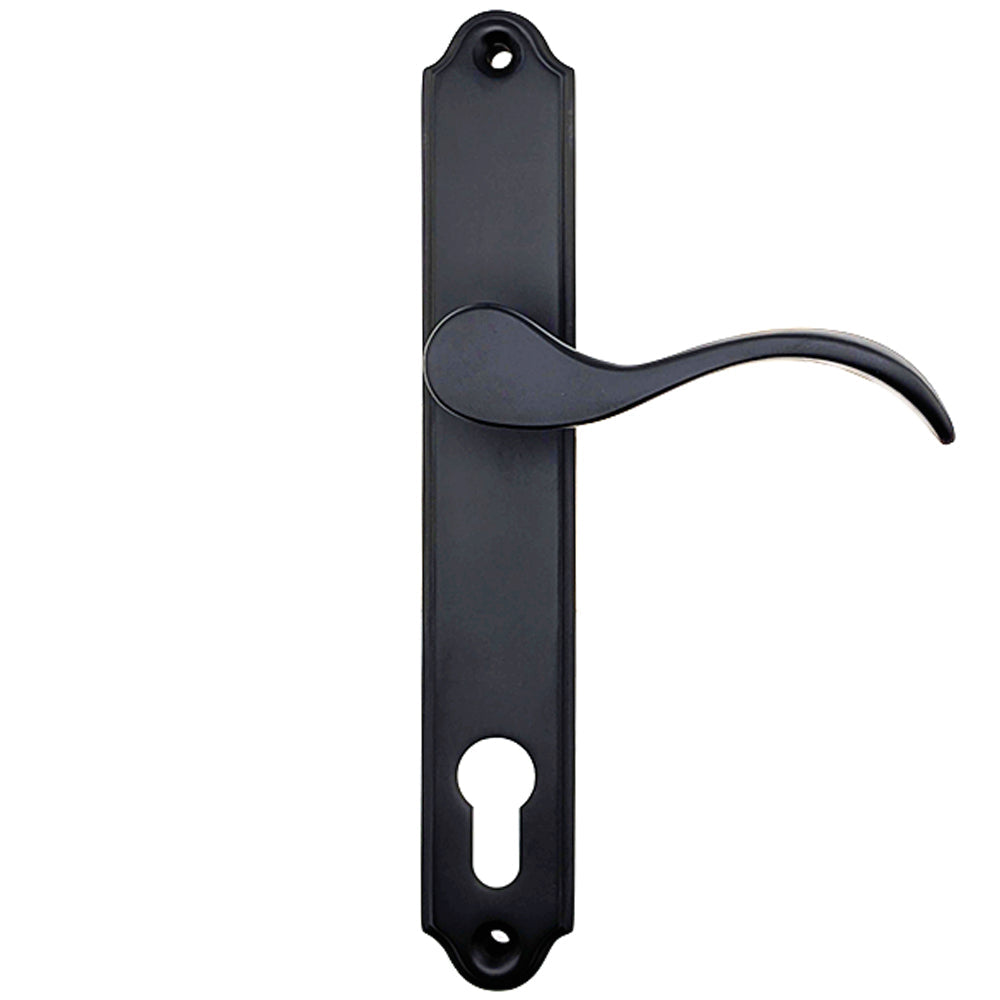

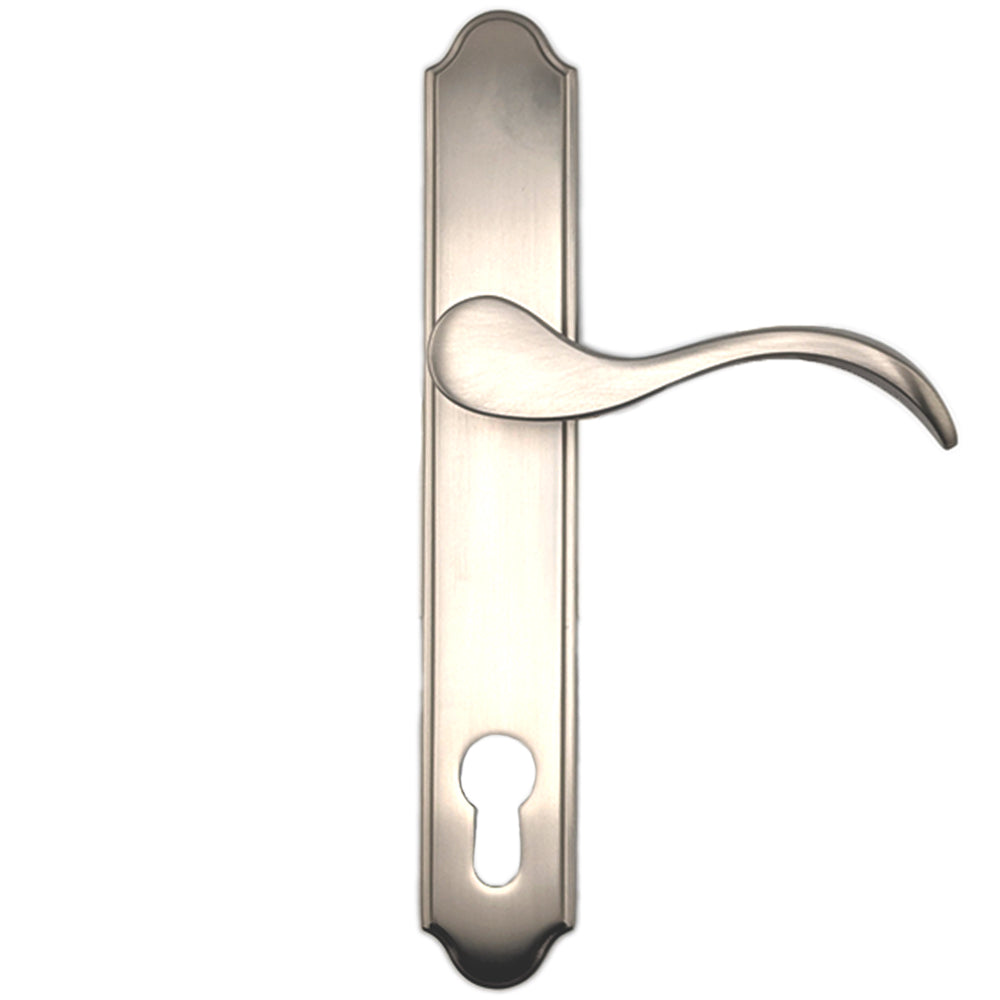

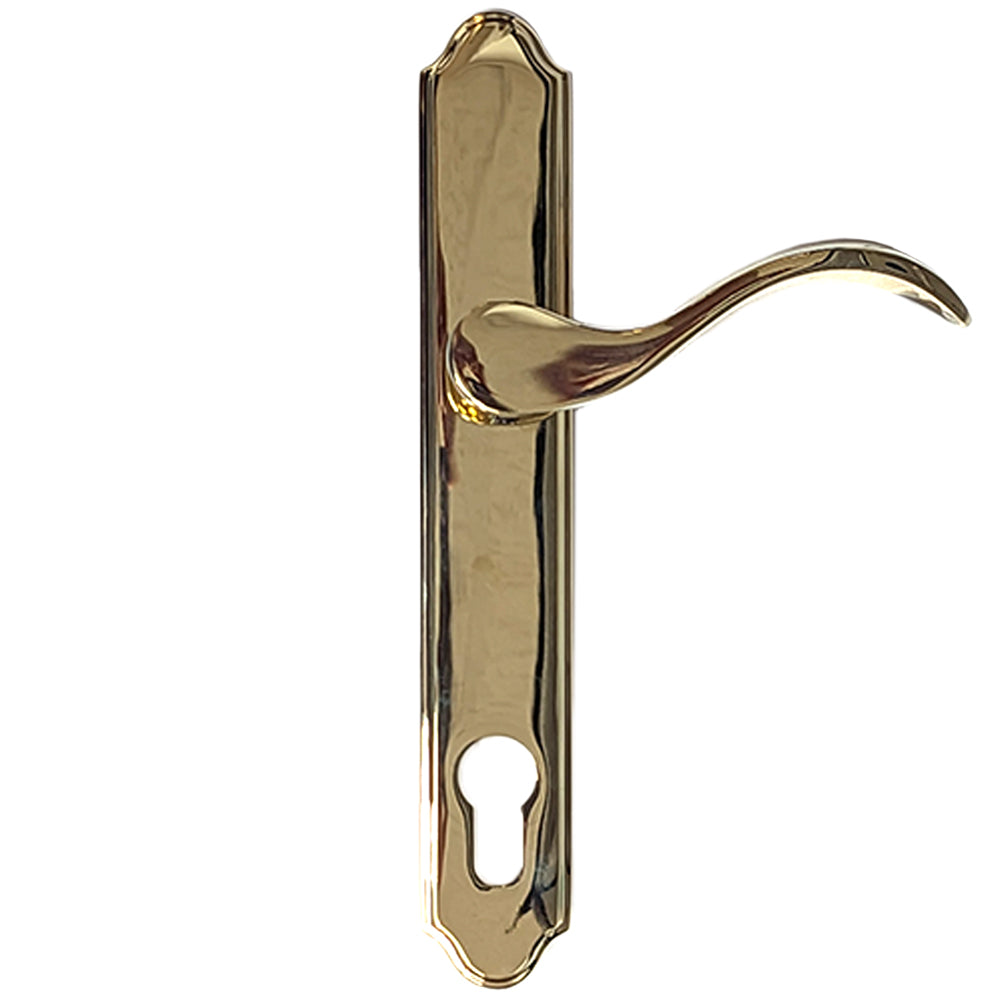

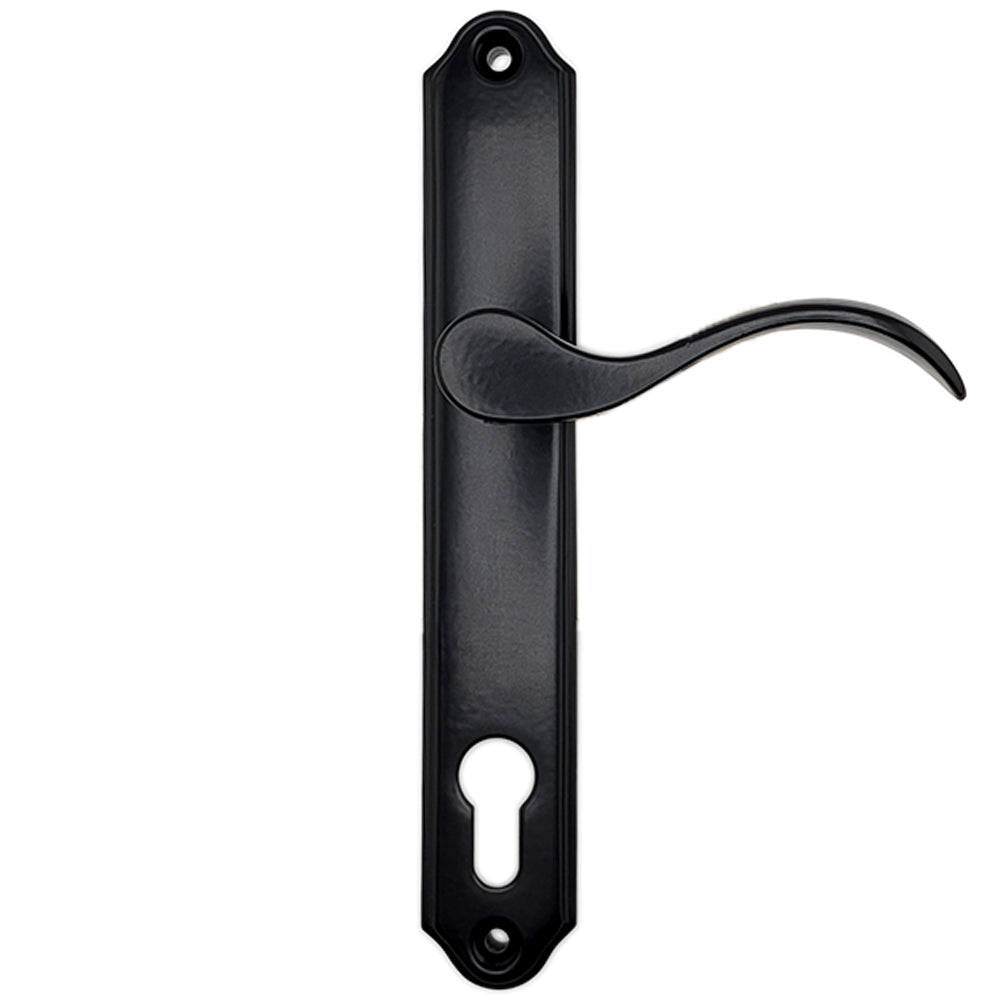

Multi-point Lock Handle Trim, 6109 Active - Choose Color

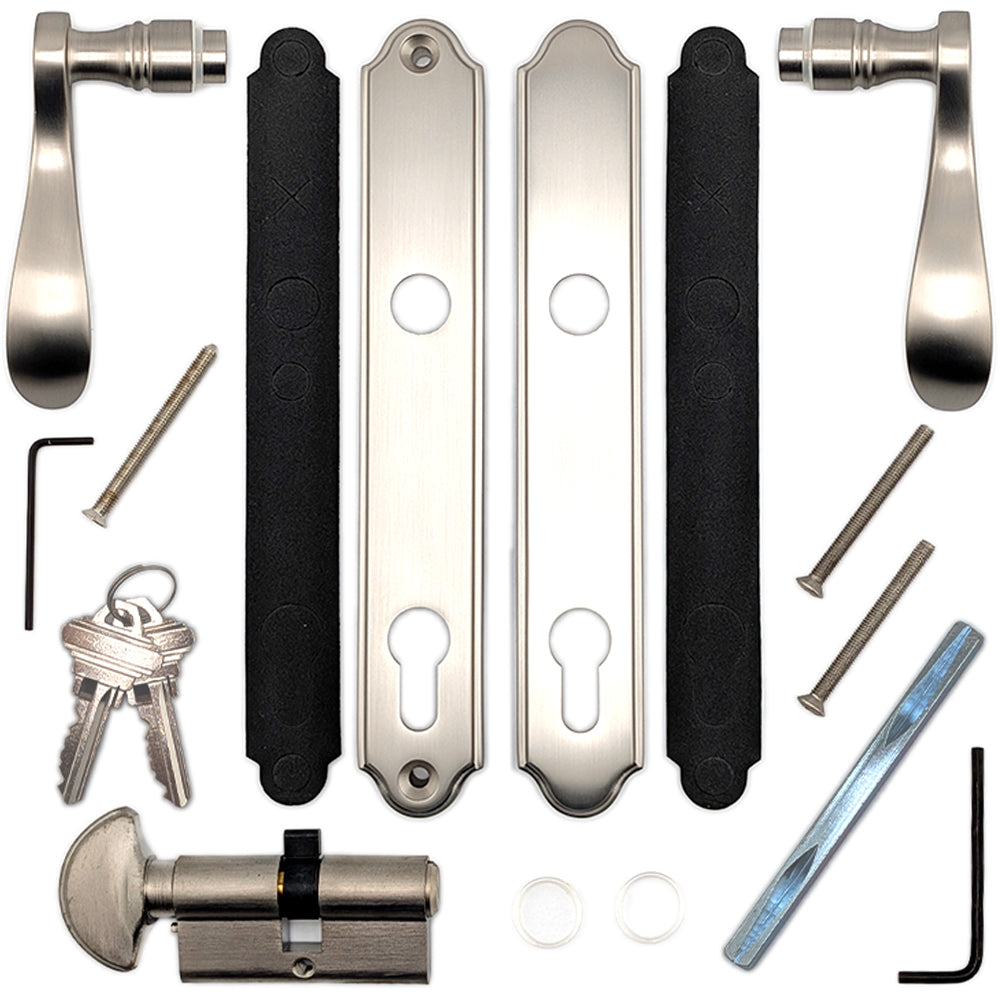

Active multipoint trim for a 1-3/4 inch door
90 degree turn deadbolt
Full 5 pin Euro Profile Cylinder with a 5 pin SC-1 keyway
Fits doors by Kolbe & Kolbe, Lincoln, Loewen, Norco, Peachtree, Pozzi, SNE, Semco, Vetter, Weathershield and Windsor doors with multi-point lock hardware.

NOTE: The handle hole is smaller than Hoppe and parts are NOT interchangeable. Does not include strike plate (part )

Replaces Atrium Door Lock Hardware:
This is the trim only - Does not include the mortise lock body # .
The plate is slightly larger and requires drilling a new screw hole.

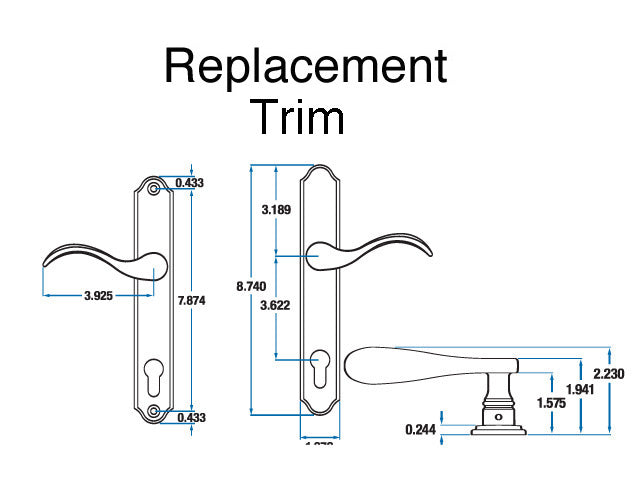

Plate measures 1-1/4 x 8-3/4 vs. Atrium lock 1-3/16 x 8-1/4.
The bottom screw hole matches the Atrium, the top hole is 9/16 inch higher; both holes will have to be drilled larger.

Keyed Active handle set 40024
Non-Keyed with Thumbturn handle set 40025
Fixed Dummy Pair handle set 40026

Atrium Door - Related Items:
Atrium Door bottom replace with Sweep # w/Bulb or w/ Fins.
Beige door frame weatherstrip # 842042.
Strike stainless steel will work with lock.
