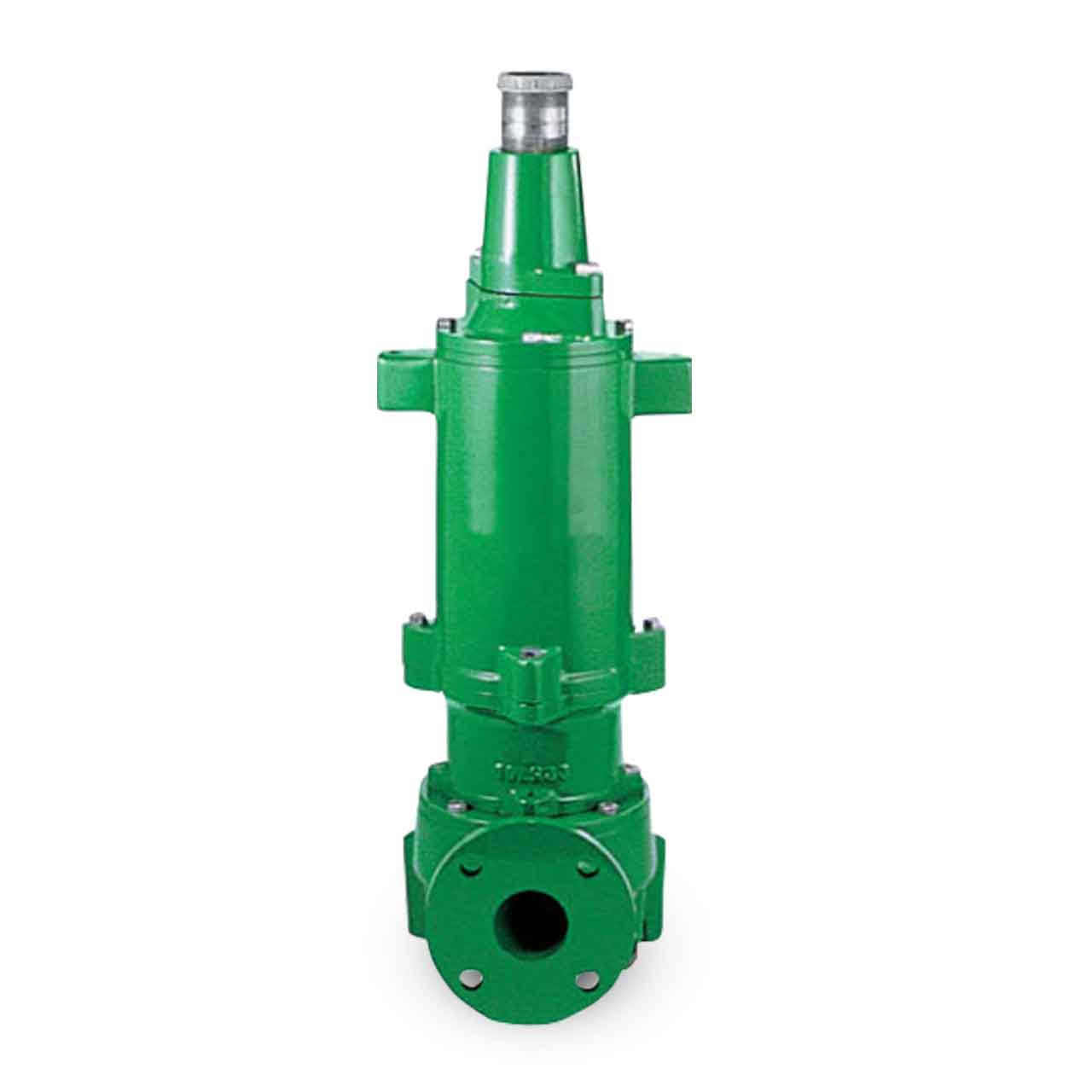

Myers VS50-43 Submersible Grinder Pump 5.0 HP 460V 3PH

Myers Model VS50 Submersible Grinder Pump Description

The Myers VS50 Grinders feature a patent-pending axial cutter designed to effectively macerate challenging sewage solids into a fine slurry. These rugged 5 horsepower submersible centrifugal grinder pumps are available in standard flow or high head configurations making them ideal for commercial, industrial and municipal applications. VS50 Grinder Pumps can be installed in a variety of packaged systems. Factory-assembled simplex or duplex packages with guide rail systems are available. Individual rail components are also available for installation in on-site concrete systems.

Myers Model VS50 Submersible Grinder Pump Superior Features

• Cable Entry System
  • Cable Jacket Sealed by Compression Fitting and Individual Wires Sealed by Epoxy Potting for Double Seal Protection against Water Ingress.
• Oil-Filled Motor
• Maximizes Heat Dissipation and Provides Constant Bearing Lubrication for Long Life
• High Torque Single Phase Motor with Start/Run Capacitor or Three-Phase Motors for Assured Starting Under Heavy Loads
• Heat Sensor
• Protects Motor from Burnout Due to Excessive Heat from any Overload Condition
• Automatically Resets when Motor has Cooled
• Heavy 416 SST Shaft
• Corrosion Resistant and Reduces Shaft Deflection for Long Life
• Double Row Ball Bearings
• Lower Double Row Angular Ball Bearings Absorbs Both Axial and Radial Loads for Increased Durability
• Shaft Seals
• Located in Oil-Filled Seal Chamber for Continuous Lubrication
• Dual Mechanical Shaft Seals for Superior Motor Protection
• Seal Leak Probe
• Located in Seal Chamber Instead of Motor Area for True Early Warning of Water Leaks. Allows Corrective Action Before Costly Motor or Bearing Failure Occurs
• Activates Warning Light in Control Panel
• Impeller
• SST, Semi-Open Impeller Provides Improved Performance and Resists Clogging
• Pump-Out Vanes help Keep Trash from Seal and Reduces Pressure at Seal Face for Longer Life
• Axial Cutter System
• Constructed of 440 SST Hardened to 57-60Rc for Long Life
• Easily Replaceable without Dismantling Pump
• Volute Case
• Cast Iron, Horizontal Discharge
• Drilled for 2-1/2 Pipe Flange
