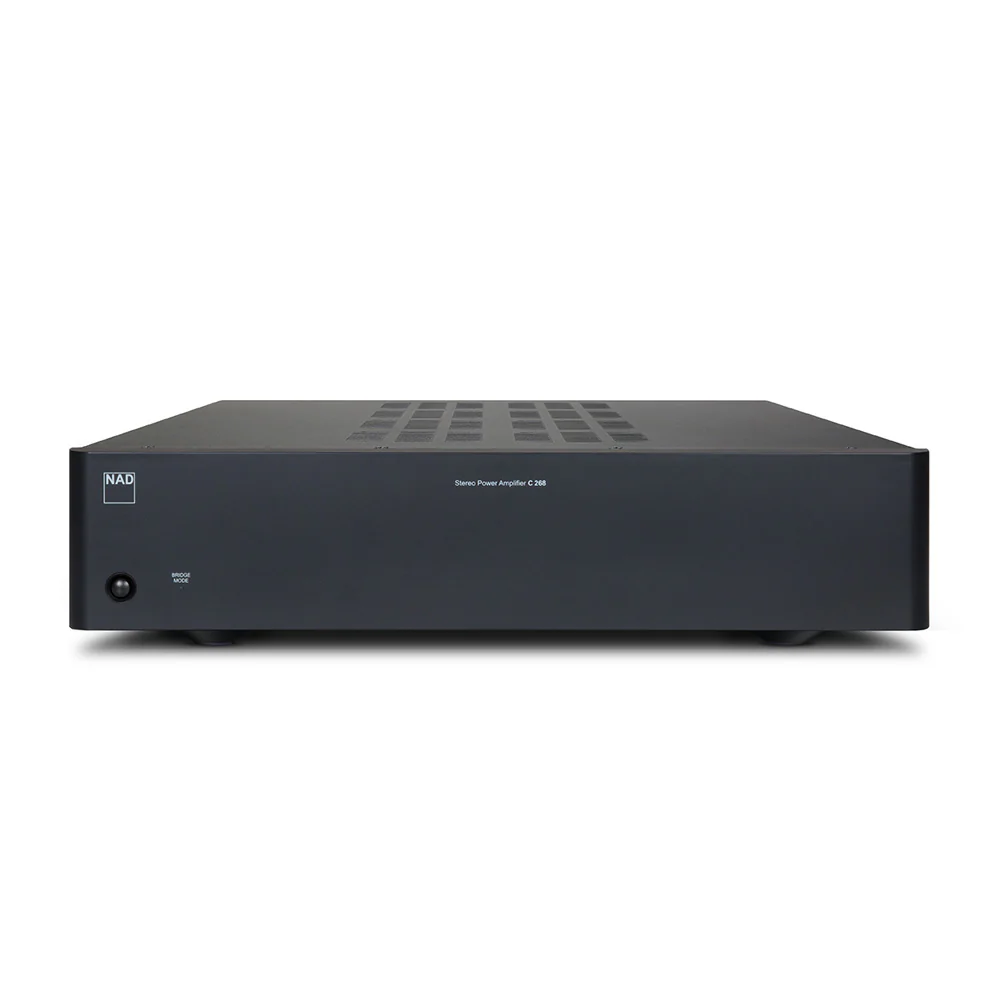

The power supply of the C 268 is capable of nearly 200 watts continuously and over 500 watts instantaneously, allowing for short term musical transients. NAD’s innovative asymmetrical PowerDrive fully utilizes every last watt available with its vast reserves of dynamic power available to accurately reproduce the most demanding music without distortion or compression. It can also operate with any AC mains voltage from 100V to 240V, and provides pure DC power to all the various stages of the C 268. This highly efficient supply also provides near perfect regulation of voltage across a wide range of conditions and provides a solid noise-free foundation for the amplifying stages.
Specifications:
Amplifier
- Continuous output power into 8 and 4 Ohms(Stereo mode)
- 80W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
- Continuous output power into 8 Ohms (Bridge mode)
- 300W (ref. 20 Hz – 20 kHz at THD 0.03%)
- THD (20 Hz – 20 kHz)
- <0.03 % (250 mW to 80 W, 8 Ohms and 4 Ohms)
- IHF dynamic power (Stereo mode, at 1 kHz 1 % THD) 8 Ohms
- 120W
- 4 Ohms
- 200W
- 2 Ohms
- 250W
- Damping Factor
- >100 (ref. 8 ohms 20 Hz – 20 kHz)
- Input Sensitivity (for 80 W in 8 Ohms)
- 750mV/50kohms
- Frequency Response
- ±0.3 dB (20 Hz – 20 kHz)
General
- Standby power
- <0.5W
- Unit Dimension (WxHxD) – Gross
- 435 x 100 x 390 mm
- Net weight
- 7.3 kg (16.1 lbs)
- Shipping weight
- 8.7 kg (19.2 lbs)
