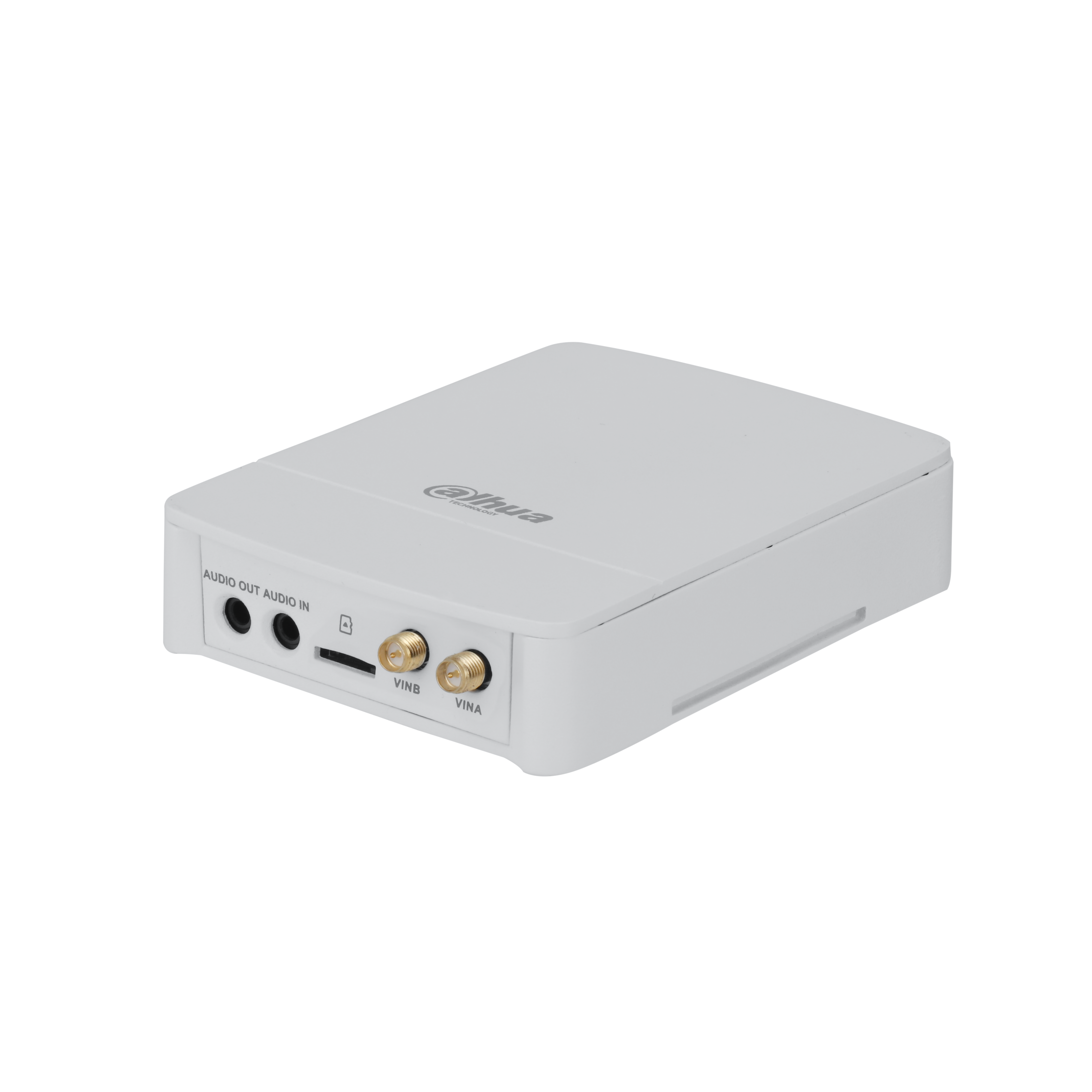

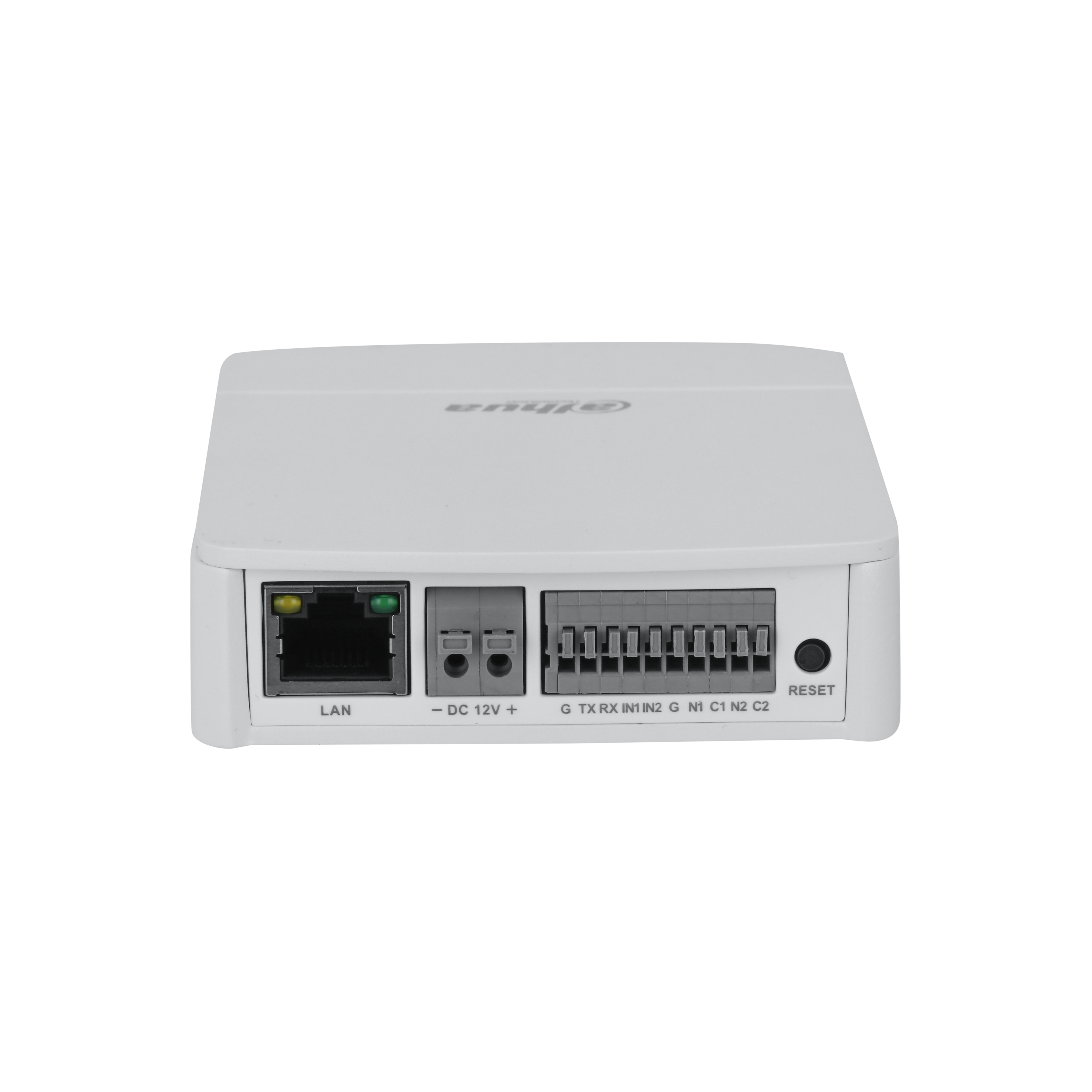

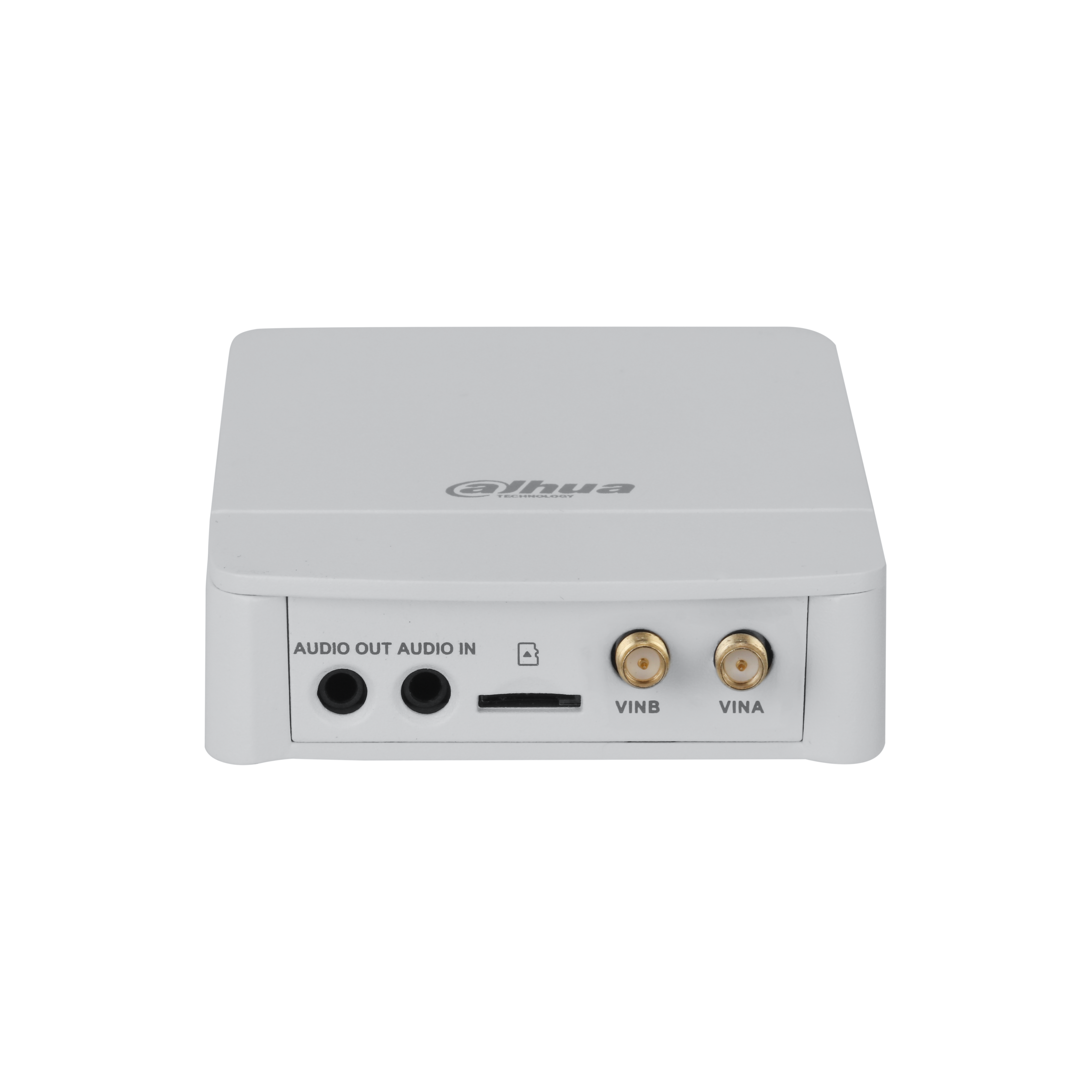

DAHUA IPC-HUM8441E-E2 4MP Covert Pinhole WizMind Network Camera-Main Box

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F2.0 (Color, 30 IRE)
0.0005 lux@F2.0 (B/W, 30 IRE)

S/N Ratio

>56 dB

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection.

Smart Object Detection

Smart abandoned object; smart missing object

Face Detection

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management; 4 rules can be set for tripwire, people counting in area and queue management.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520@(1–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

2 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR;CBR;ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; missing object; abandoned object; parking detection; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; people counting; people number error detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE8, IE9, and IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Port

Audio Input

1 channel (3.5mm JACK port)

Audio Output

1 channel (3.5mm JACK port)

Alarm Input

2 channels in: wet contact, 5 mA 3–5 VDC

Alarm Output

2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC

Power

Power Supply

12 VDC; PoE (802.3af)

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 6.17 W (12 VDC); 8.25 W (PoE);
Max.: 7.6 W (12 VDC); 9.32 W (PoE) (High frame rate + Intelligence on + WDR)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH) , non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH) , non-condensing

Structure

Casing Material

Metal

Product Dimensions

110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") (L × W × H)

Net Weight

210 g (0.46 lb)

Gross Weight

646 g (1.42 lb)
