Description
x| PRODUCT DESCRIPTION | |||

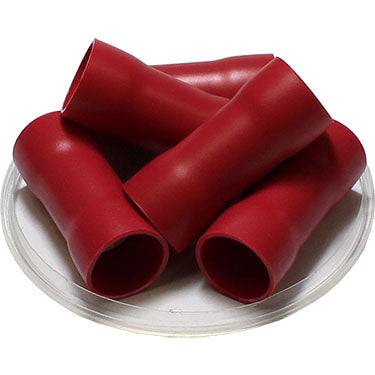

| Insulated Parallel splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively, For use with copper wires only. | |||
| DIMENSIONS AND FEATURES | |||
| L: | 39.5mm (1.49") | Wire Range: | 2AWG |
| D: | 15mm (0.61") | Material: | Tin-Plated Copper - Seamless |
| D1 | 9.5mm (0.37") | Insulation: | Vinyl |
| Color: | Red | ||
| Configuration: | Flared | ||
| Max Temperature Rating: | 75oC (167oF) | ||
| Max Electrical Current: | 170AMP | ||
| CE Certified | Yes | ||
| RoHS Compliant: | Yes | ||
| TECHNICAL DRAWING | |||
 | |||
Cross Reference Parts:
Click to view data sheet
