Description:

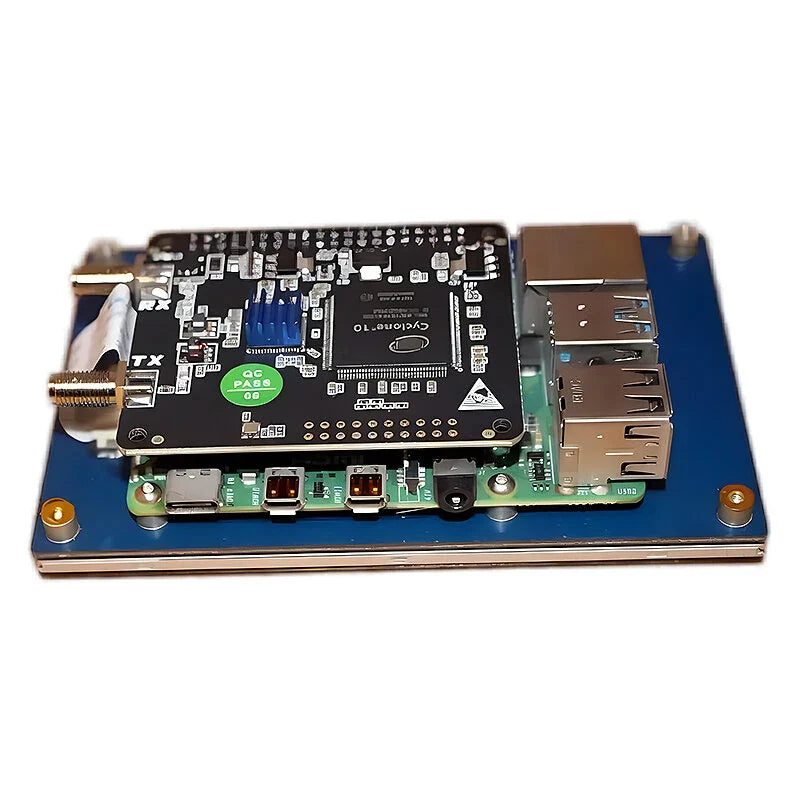

1. The radioberry is actual a radio card (raspberry pi hat), which can be plugged into a raspberry pi, forming a Software Defined Radio (SDR).
2. The radio card uses an Analog Devices AD9866 which is a 12-bit broadband modem mixed signal front end that has been repurposed as a direct down conversion (DDC) and direct up conversion (DUC) SDR transceiver covering 0-30 MHz

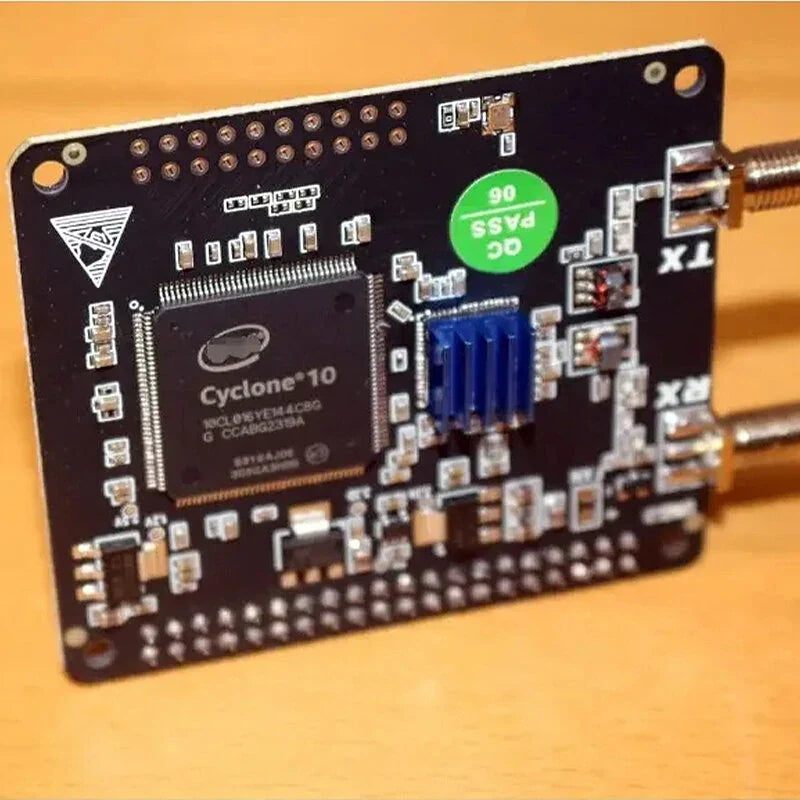

3. The radio card uses an Intel Cyclone 10CL0xx FPGA (The actual model number is subject to the product shown.). The firmware will be loaded via the raspberry pi.
4. Power supply for the radio card is provided by the raspberry pi.
Package Include(optional):
Optional Type 1【Only Module Board】:
1x Module Board

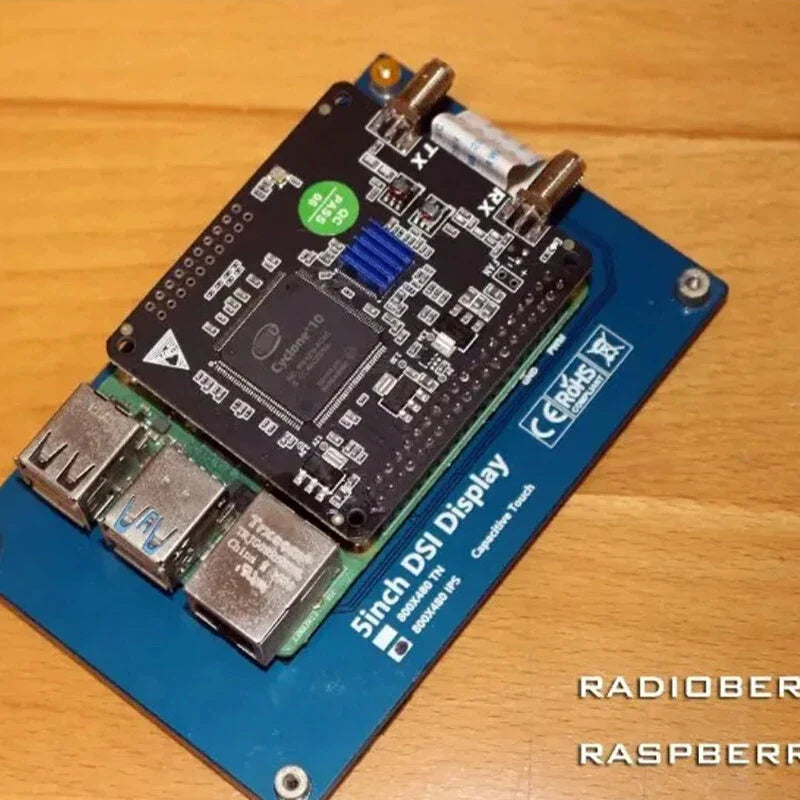

Optional Type 2【Module Board+Raspberry Pi+Display Screen】:
1x Module Board
1x Raspberry Pi
1x Display Screen
