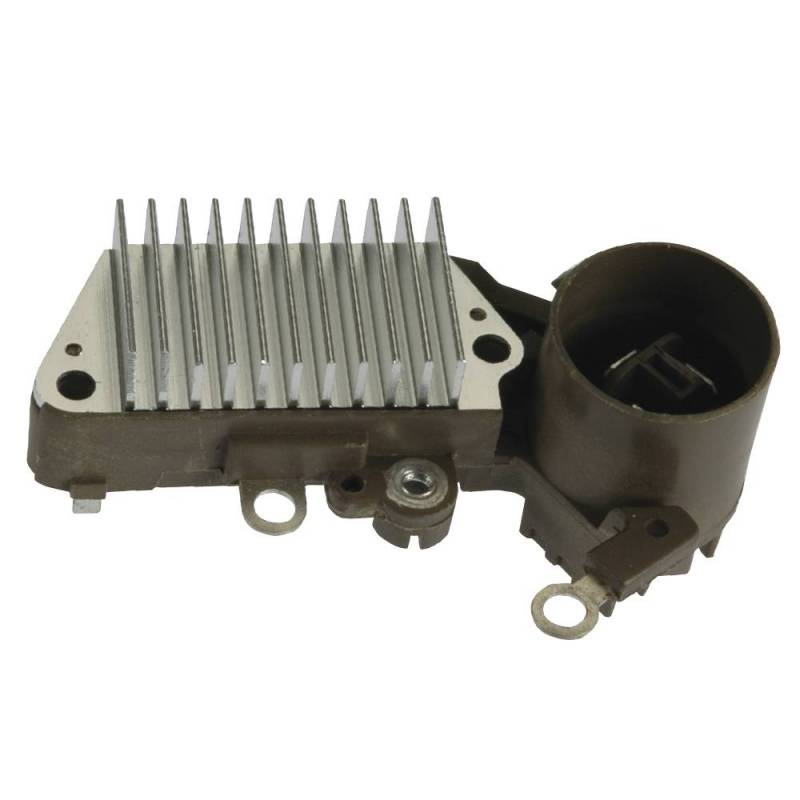

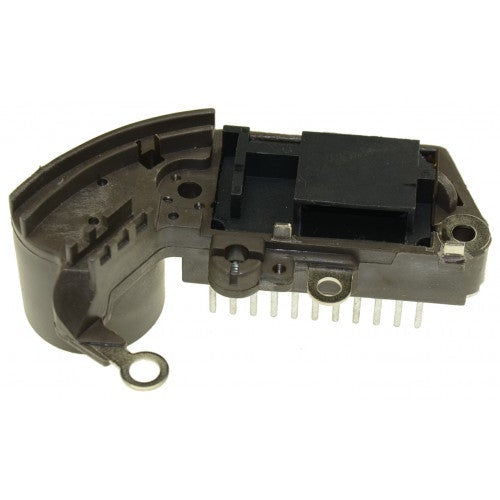

REG-7199-JP REGULADOR DE ALTERNADOR DENSO IR/IF (TOYOTA, HONDA)

Información del Producto

• Número de refacción: REG-7199
• Fabricante: DENSO
• Motor-Alternador: Denso IR / IF
• Circuito de reparación: VR-H2005-4AS
• Rectificador complementario: RN-13 / 13PL

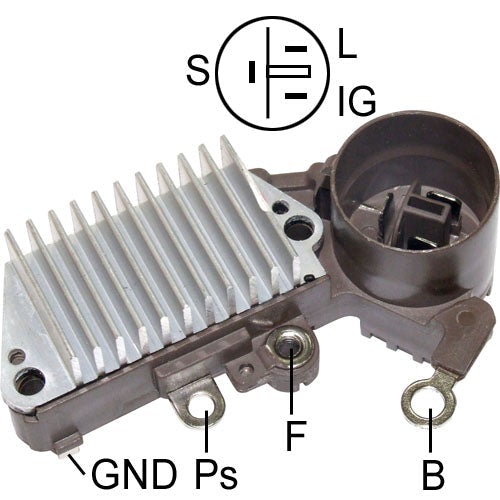

• Especificaciones [V]: 12 Voltios, Terminales A-Circuit, S-IG-L, 14.5 Vset‎
• Características adicionales: Función de bloqueo de luz indicadora
• No. Relacionados: R043 (R038 *Standard), VR-H2005-4A, IN220E, IN320, JFT1405, IN438C
• Descripción:‎ Regulador, Denso
• Otros componentes o Industria: 11101, 12205, 12856, 12857, 13229, 13240, 13241 + otros.
• Versión de enchufe redondo de Oval Plug VRH2005-62A
• Función de lámpara activa - con salida.
• Similar a IN220 excepto: IN220: Sin indicador de bloqueo de luz. IN320/REG-7199: con función de pestillo de luz indicadora.

Información de compatibilidad

Remplaza:

Daihatsu Motor Co 27700-87705-000, Denso 126000-0400, Honda 31150-PD2-004, Isuzu 8-94123-053-0, Kubota 16540-64601, Toyota 27700-63021

Usado en:

Chevrolet (1985-1988) ** Daihatsu (1989-1992) ** Geo (1989-1992) ** Honda (1984-1989) ** Honda - Europe (1984-1990) ** Isuzu (1985-1989) ** Kubota (1986-2007) ** Pontiac (1985-1988) ** Toyota (1983-1992) ** Toyota - Europe (1982-1995)

No. de Unidad (Alternador) Compatible:

Daihatsu Motor Co 27060-87711, 27060-87711-000; Denso 100211-1000, 100211-1001, 100211-1010, 100211-1030, 100211-1031, 100211-1040, 100211-1041, 100211-1060, 100211-1061, 100211-1070, 100211-1073, 100211-1074, 100211-1080, 100211-1081, 100211-1090, 100211-1091, 100211-1100, 100211-1101, 100211-1110, 100211-1111, 100211-1200, 100211-1201, 100211-1210, 100211-1211, 100211-1212, 100211-1220, 100211-1221, 100211-1222, 100211-1223, 100211-1224, 100211-1230, 100211-1300, 100211-1320, 100211-1321, 100211-1330, 100211-1331, 100211-1340, 100211-1341, 100211-1360, 100211-1361, 100211-2000, 100211-2001, 100211-2020, 100211-2021, 100211-2030, 100211-2031, 100211-2040, 100211-2060, 100211-2061, 100211-2070, 100211-2071, 100211-2100, 100211-2102, 100211-2110, 100211-2150, 100211-2151, 100211-2170, 100211-2250, 100211-2280, 100211-2360, 100211-2370, 100211-2380, 100211-2400, 100211-2500, 100211-2730, 100211-2820, 100211-2830, 100211-3030, 100211-3060, 100211-3090, 100211-3091, 100211-3110, 100211-3111, 100211-3120, 100211-3150, 100211-3151, 100211-3160, 100211-3180, 100211-3181, 100211-3182, 100211-3220, 100211-3221, 100211-3260, 100211-3352, 100211-3430, 100211-3431, 100211-3500, 100211-3501, 100211-3510, 100211-3530, 100211-3531, 100211-3540, 100211-3550, 100211-3551, 100211-3680, 100211-3770, 100211-7000, 100211-7060, 100211-7061, 100211-7260, 100211-7430, 100211-7450, 100211-7590, 100211-7600, 9760211-706; GM 94137345, 94445672, 94840298, 94844554, 94845639; Honda 31100-PD1-024, 31100-PD1-034, 31100-PD2-004, 31100-PD2-004RM, 31100-PD2-014, 31100-PD2-024, 31100-PD2-970, 31100-PD2-973, 31100-PH1-004, 31100-PH1-004RM, 31100-PH1-014, 31100-PH1-024, 31100-PH1-0242, 31100-PH1-024RM, 31100-PH1-661, CHA02, CJK09, CJK36; Isuzu 8-94109-911-6, 8-94120-564-5, 8941012351, 8941099111, 8941099115, 8941205640, 8941205641, 8941313571, 8941313572, 8941373450, 8941373451, 8941373452, 8944086740, 8944393050, 8944456720; Kubota 16540-64011; Marelli 943346008010; Toyota 27060-01011, 27060-06010, 27060-10010, 27060-10011, 27060-10011-84, 27060-10061, 27060-10061-84, 27060-11090, 27060-15040, 27060-15040-84, 27060-15041, 27060-16010, 27060-16011, 27060-16012, 27060-16012-84, 27060-16013, 27060-16040, 27060-16050, 27060-16050-84, 27060-16051, 27060-16080, 27060-16080-84, 27060-16081, 27060-16082, 27060-16082-84, 27060-16090, 27060-16091, 27060-16122, 27060-16122-84, 27060-16160, 27060-16160-84, 27060-35060, 27060-35060-84, 27060-35061, 27060-35061-84, 27060-35071, 27060-35071-84, 27060-35081, 27060-42060, 27060-43050, 27060-43060, 27060-43061, 27060-43062, 27060-43062-84, 27060-43100, 27060-43110, 27060-43111, 27060-43120, 27060-43130, 27060-63020, 27060-63021, 27060-63030, 27060-63030-84, 27060-63031, 27060-63031-84, 27060-63031-84, 27060-63040, 27060-63041, 27060-63080, 27060-63080-84, 27060-63081, 27060-63082, 27060-63082-84, 27060-63100, 27060-63100-84, 27060-63101, 27060-63102, 27060-63102-84, 27060-64020, 27060-65010, 27060-65020-84, 27060-70050, 27060-70080, 27060-70111, 27060-70150, 27060-72070, 27060-72100, 27060-72100-84, 27060-72101, 27060-72120, 27060-72150, 27060-72170, 27060-72170-84, 27060-72171, 27060-72171-84, 27060-75080, 27060-75090; Valeo 436519, 436537, 436537, 436537, 436537, R1-100CE
