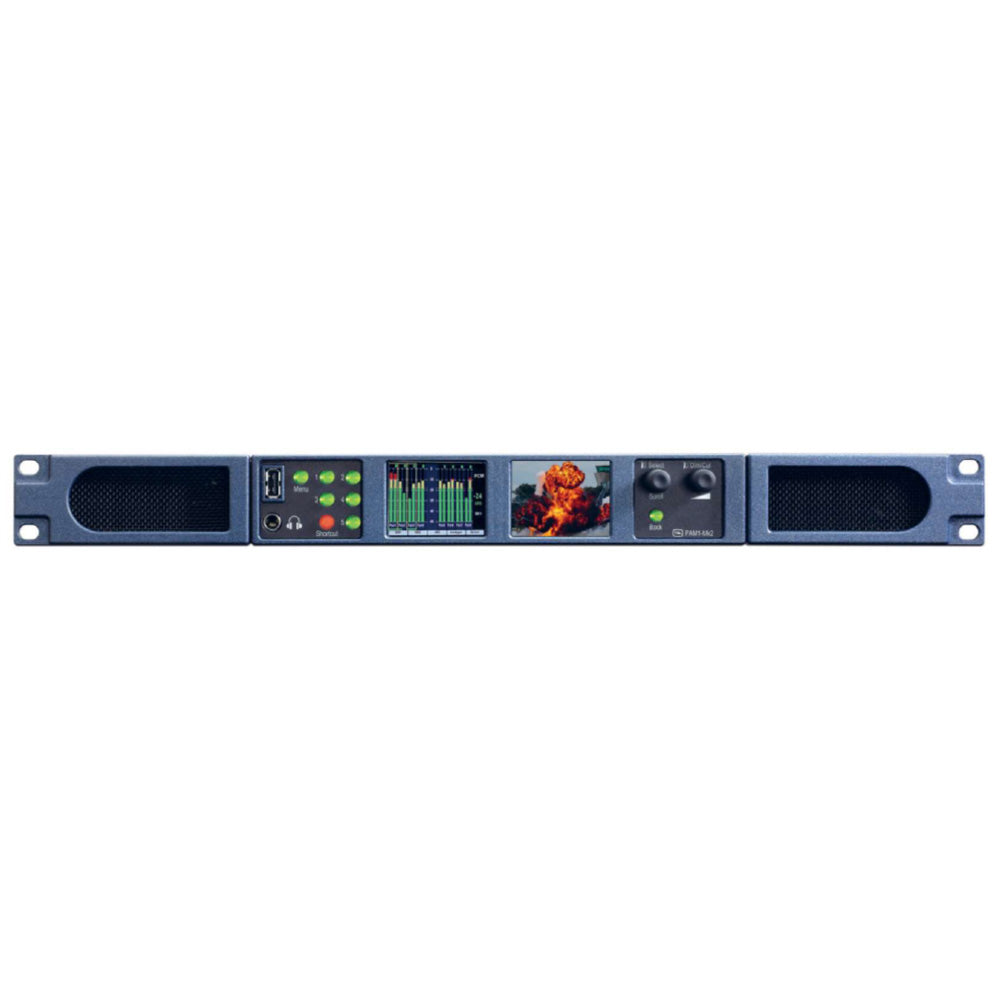

TSL PAM1-IP-3G-ND-DNT - 3G SDI / Dante / AES67 Precision Audio Monitor

PAM1-IP-3G 1RU Precision Audio Monitor. Includes DANTE/AES67 Audio Monitoring option, Dante Domain Manger Compliant. Compact, fully comprehensive Audio Monitoring Solution useful when needing to handle a wide variety of uncompressed audio sources including Dante.

Developed specifically to address the requirements of customers needing to monitor uncompressed SMPTE 2110 and SMPTE 2022-6 sources, the PAM-IP Range is equipped with 2 x 10Gig/E interfaces for direct connection into COTS IP fabrics. Supporting IP control protocols such as NMOS and Ember+ allows for 'In-Band' control of the PAM-IP, offering tight integration with a variety of control systems.

PAM-IP is available in 1RU or 2RU form-factors, and retaining the same front panel user interface and feature set from the already popular PAM-MK2 series means that Engineers and Operators familiar with traditional Audio Monitoring operation can now monitor uncompressed IP sources without having to re-train or adjust their work. In addition to it's IP interfacing the PAM-IP Range includes key monitoring features such as comprehensive loudness monitoring with histogram display, Dolby encoded audio monitoring (including metadata), and a video condence display of both SDI and IP sources.

Audio over IP is also covered, with Primary and Redundant 1Gig/E Dante/AES67 ports, whilst the PAM-IP also maintains 3G/HD/SDSDI, AES and Analogue I/O connectivity, helping customers transition to IP environments with ease.

Features:

• Same feature set and operation as PAM1 MK2.
• Now supports IP Infrastructures whilst maintaining 3G/HD/SD-SDI, AES and Analogue Audio connections
• Now supports Dante Audio over IP (optional extra)
• Monitoring and decoding of Dolby E®, Dolby Digital® and Dolby Digital Plus® (including Metadata)
• Loudness Monitoring – EBU (R128) and ATSC (A85)
• 3G/HD/SD-SDI Video Source Monitoring directly on Front Panel.
• User Programmable Presets
• Remote Control (API and GPI)
• Web-GUI
• Equipped with 2 x 10Gig/E SFP+ ports
• Supports uncompressed ST-2022-6 and ST-2110
• Supports IGMP v3 for Multicast 'join/leave' requests
• Recall of stored Presets also includes Multicast 'join/leave' request
• Equipped with Primary and Secondary 1 Gig/E ports for use on Dante/AES67 Networks
• Fully compatible with Audinate's Dante Controller
• High quality internal full range loudspeaker system
