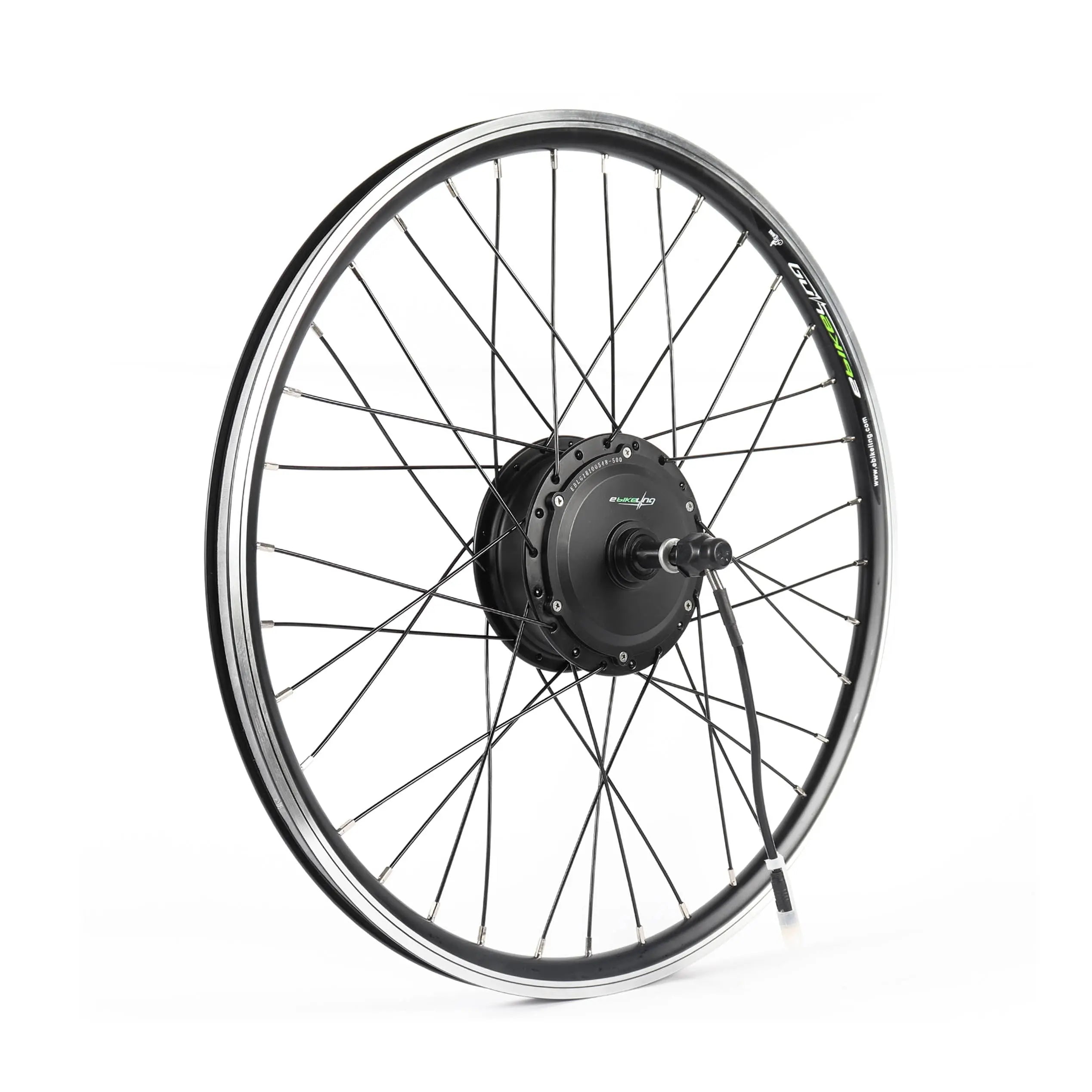

xWaterproof 36V 500W 26" Rear/Front Geared Hub Motor Wheel
Disclaimer: This is a wheel-only listing, it doesn't come with any additional kit components.
The aluminum double-walled rim and hub motor are already attached, all you need to do is put your tire to the motor wheel.
The wheel axle diameter is 10 mm. Steel forks can be filed if the axle does not fit into the dropout because of its slightly larger diameter. Please do not file more than necessary and make sure that it does not damage the forks. Aluminum forks can also be filed, with extra caution.
Aluminum rims have openings for a schrader-type valve.
SPECIFICATIONS
| Recommended Tire Width | 1.75" 1.95" 2.125" |
| Rim Width | 19mm |
| Rim Diameter (Outer) | 572mm |
| Rim Diameter (Inner) | 522mm |
|
Spoke |
214mm 12G Carbon Steel Copper Nipples |
| Rear Dropout | 135mm |
| Rear Axle Length | 199mm |
| Front Dropout | 101mm |
| Front Axle Length | 165mm |
| Motor Torque | 40Nm Efficiency >80% |
| Motor RPM (Nominal) | 300 |
| Motor Hub Diameter | 158mm |
| Motor Magnets | 20 |
| Peak Power | 0.84kW |
| Operating Mode | S1 |
