Description

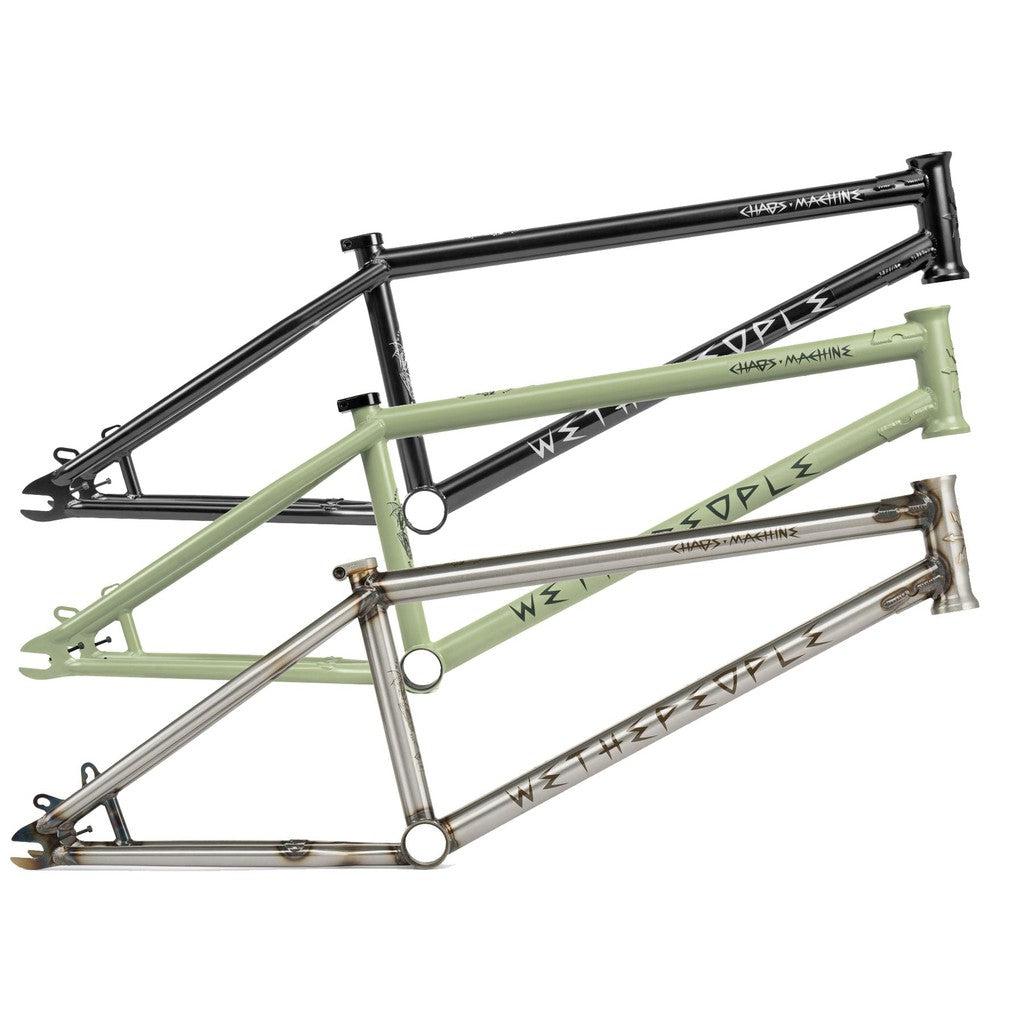

xSave your back and get your 22 inch build moving with the 22 Inch Chaos Machine frame! Contact us to get an order together with the right brake and wheel hardware.
Features
- 22inch wheel frame!
- Tyson Jones-Peni signature trail/transition frame
- Long and stable trail geometry (same chainstay length as the 20" Chaos Machine)
- Unique disc brake mount works in multiple chain stay positions
- 127mm tall head tube for less spacers with an uncut fork
- Larger radius stay tubing for a stiffer and stronger back end
- CNC machined seat stay bridge
- Disc brace on stays for extra braking stiffness
- Larger 1.8mm welding at head tube
- Includes Wethepeople Supreme alloy seat clamp
- Wider rear triangle allows clearance for a 2.4" tyre
- WTP top tube and down tube gusset
- Includes LIFETIME GUARANTEE
- Requires 22 inch forks, wheels and tyres.
Specifications
Tubing - Butted, Japanese seamless 4130 crmo tubing
Bottom Bracket - 74mm mid size
Head Tube - 127mm cnc machined and heat-treated, integ. h/set, badge
Dropouts - Minimal size, not suitable for pegs, 6mm cnc machined heat-treated crmo, integrated chain tensioners
Brakes - IS disc mount compatible (requires IS to Post Mount adapter) with 140-160mm rotors, frame comes with repl. brake hardware pivot-3 removable brake mounts, frame comes with repl. brake hardware
Weight - 2.40kg approx
Geometry
Top Tube Length - 22.25"
Chain Stay Length - 14" - 14.75" / optimised for 14.1"/14.35"/14.7" with 30-9 gearing
Head Tube Angle - 74.25°
Seat Tube Angle - 71°
BB Height - 12.25"
Standover Height - 9.75"
